| Nama Wahi | B101UAN01.C |
| Waitohu | AUO |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | eDP |
| panel brand | AUO |
| panel model | B101UAN01.C |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | AHVA, Normally Black, Transmissive |
| active area | 216.81×135.5 mm |
| outline | 229.71×150.3×4.6 mm |
| surface | Glare (Haze 0%) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193150% |
| response time | 15/10 (Typ.)(Tr/Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |

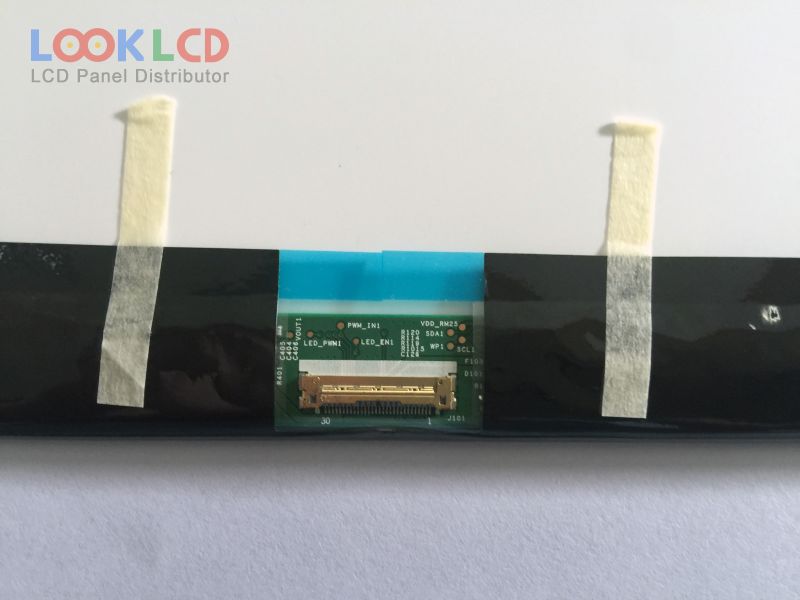

| signal interface | eDP (2 Lanes), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| B101EVT05.0 | AUO | 10.1 | 1280×800 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| HT12X21-230 | HYDIS | 12.1 | 1024×768 |
| LD089WX1-SL03 | LG Display | 8.9 | 1280×768 |
| LP079X01-SMA7 | LG Display | 7.9 | 768×1024 |
| LQ101K1LY02 | SHARP | 10.1 | 1280×800 |
| LTL070NL02-W02 | Samsung | 7.0 | 1024×600 |
| LTL101AL02-T01 | Samsung | 10.1 | 1280×800 |
| LTL106AL01-002 | Samsung | 10.6 | 1366×768 |
| TV097X0M-NS0 | BOE | 9.7 | 768×1024 |
