| Nama Wahi | B101UAN01.9 |
| Waitohu | AUO |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 600:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AUO |

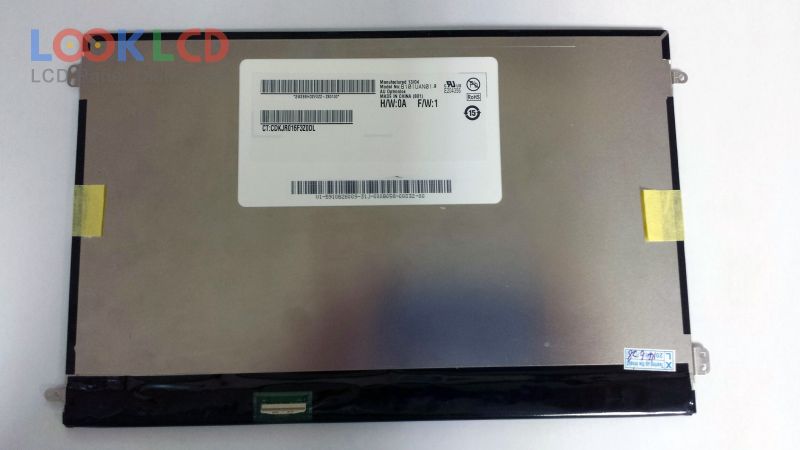

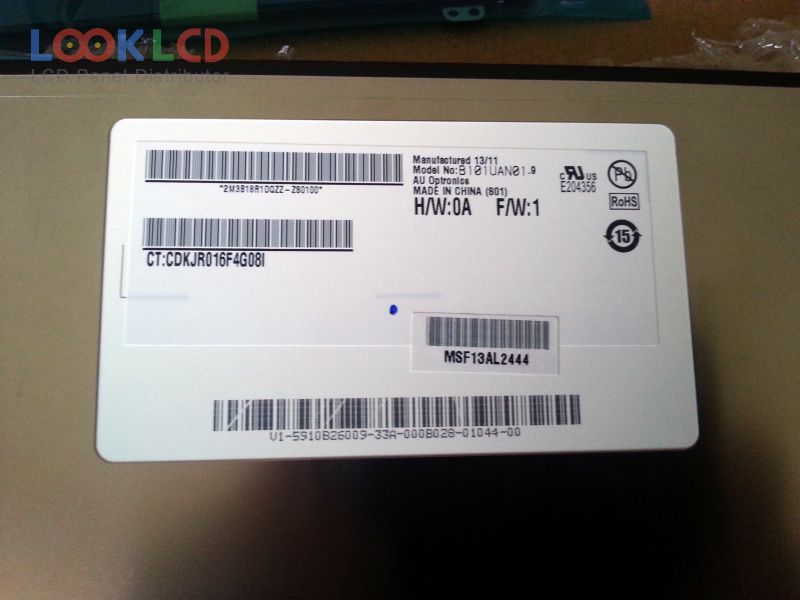

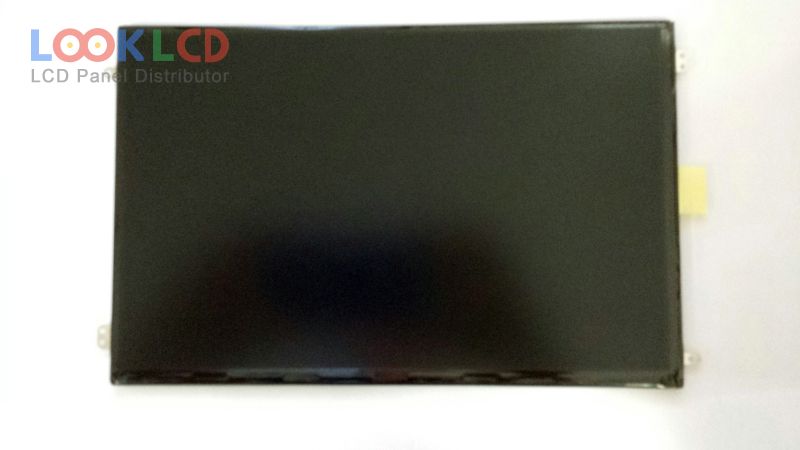

| panel model | B101UAN01.9 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | AHVA, Normally Black, Transmissive |
| active area | 216.81×135.5 mm |
| outline | 242.44×148.15×4.7 mm |
| surface | Antiglare |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 600:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193152% |
| response time | 15/10 (Typ.)(Tr/Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (2 ch, 8-bit), 50 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAN07.2 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| B080XAN01.0 | AUO | 7.9 | 768×1024 |
| B080XAT01.1 | AUO | 7.9 | 768×1024 |
| B101EAN01.3 | AUO | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| HT10X21-311 | HYDIS | 10.4 | 1024×768 |
| LQ097L1JY01 | SHARP | 9.7 | 2048×1536 |
| LTL101AL01-W01 | Samsung | 10.1 | 1280×800 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| N080ICE-GB0 Rev.C1 | Innolux | 8.0 | 800×1280 |
