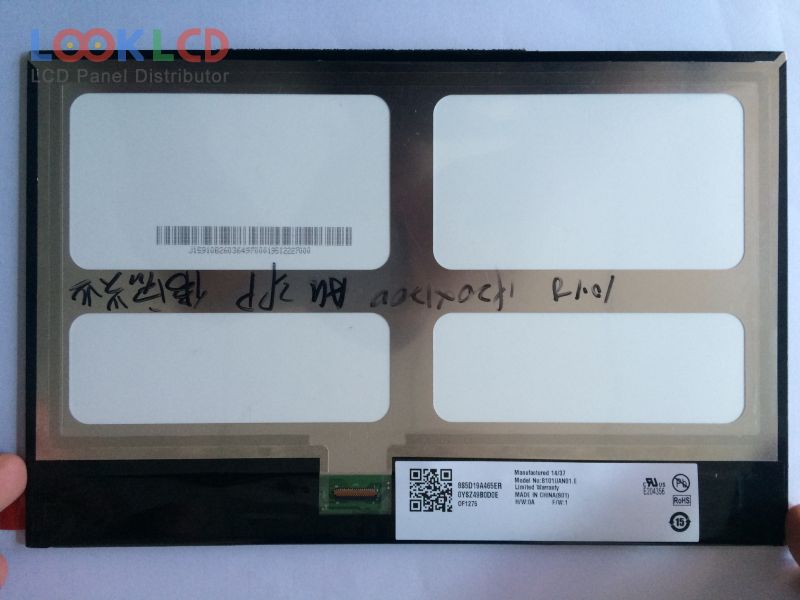

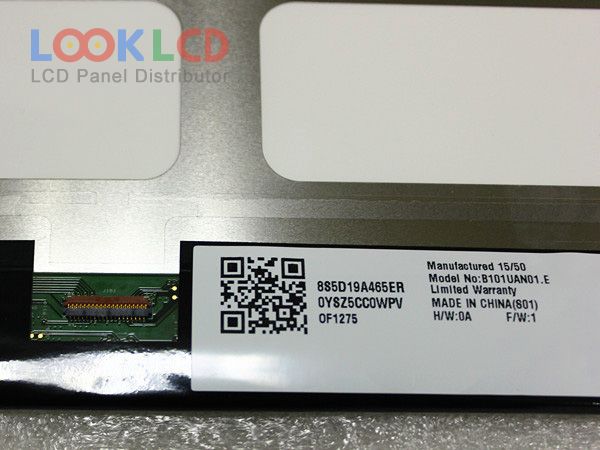

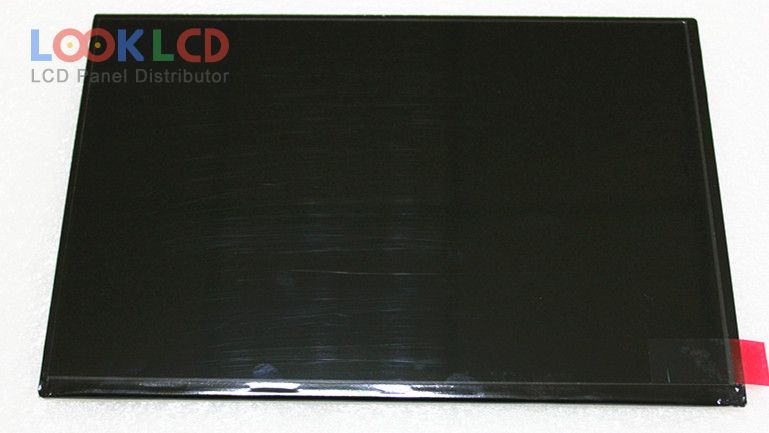

| Nama Wahi | B101UAN01.E |
| Waitohu | AUO |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1920×1200 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | AUO |
| panel model | B101UAN01.E |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1920(RGB)×1200 , WUXGA |
| display mode | AHVA, Normally Black, Transmissive |
| active area | 216.81×135.5 mm |
| outline | 227.72×148.66×4.4 mm |
| surface | Glare (Haze 0%) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6 stringsWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 39 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| B101UAN01.1 | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW0A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW1A | AUO | 10.1 | 1920×1200 |
| B101UAN01.7 HW2A | AUO | 10.1 | 1920×1200 |
| B101UAN01.9 | AUO | 10.1 | 1920×1200 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B101UAN01.E | AUO | 10.1 | 1920×1200 |
| B101UAN02.1 | AUO | 10.1 | 1920×1200 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| B101UAT02.1 | AUO | 10.1 | 1920×1200 |
| A070PAN01.0 | AUO | 7.0 | 900×1440 |
| BP080WX1-100 | BOE | 8.0 | 1280×800 |
| HJ101NA-02C | Innolux | 10.1 | 1280×800 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL106HL01-001 | Samsung | 10.6 | 1920×1080 |
| TPF0702002N | JDI | 7.0 | 1200×1920 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
