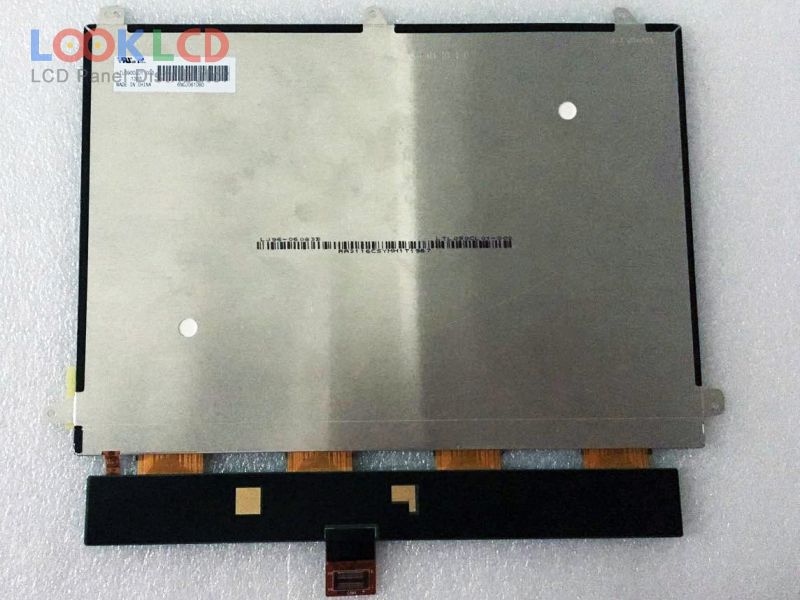

| Nama Wahi | LTL090CL01-002 |
| Waitohu | Samsung |
| Rahi | 9.0 |
| Taupānga | PAD |
| Whakatau | 1920×1280 |
| Te tito | LCM |
| Tirohanga | |
| CR | 800:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | SAMSUNG |
| panel model | LTL090CL01-002 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 1920(RGB)×1280 |
| display mode | PLS, Normally Black, Transmissive |
| active area | 190.08×126.72 mm |
| outline | 200.91×141.21×2.73 mm |
| surface | |
| brightness | |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K (6-bit), CIE193150% |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLED |
| signal interface | MIPI (4 data lanes), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
