| Nama Wahi | C090EAN01.1 |
| Waitohu | AUO |
| Rahi | 9.0 |
| Taupānga | CNS |
| Whakatau | 1280×720 |
| Te tito | LCM |
| Tirohanga | 680 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |

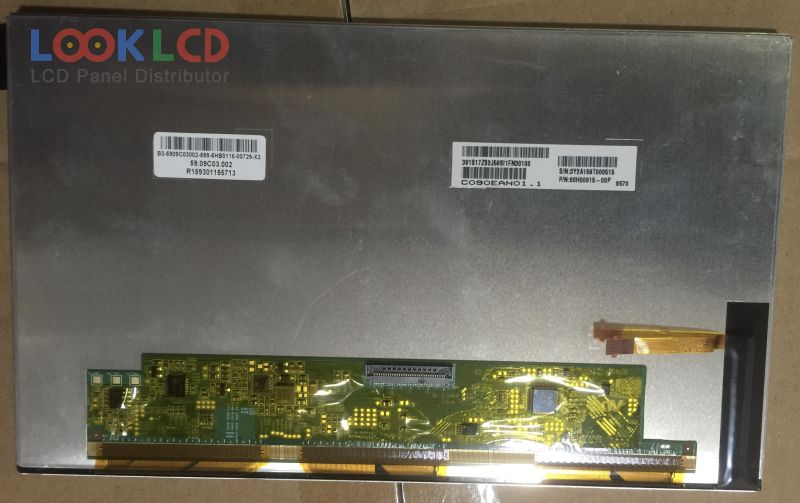

| panel brand | AUO |
| panel model | C090EAN01.1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 1280(RGB)×720 , WXGA |
| display mode | AHVA, Normally Black, Transmissive |
| active area | 198.72×111.78 mm |
| outline | 210×126.8 mm |
| surface | Antiglare |
| brightness | 680 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 15/15 (Max.)(Tr/Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S3PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| input voltage | 3.3/3.3V (Typ.)(VDD/VDDA) |
| application | CNS |
