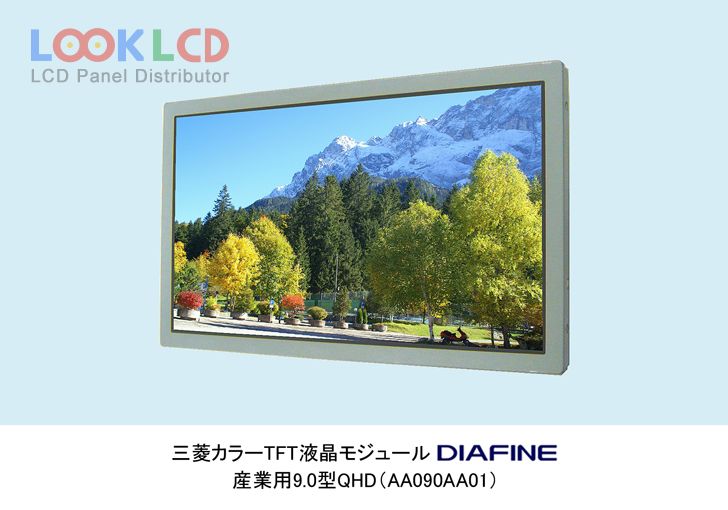

| Nama Wahi | AA090AA01 |
| Waitohu | Mitsubishi |
| Rahi | 9.0 |
| Taupānga | IA |
| Whakatau | 960×540 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 1000:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | Mitsubishi |
| panel model | AA090AA01 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 960(RGB)×540 , qHD |
| display mode | IPS, Normally Black, Transmissive |
| active area | 198.72×111.78 mm |
| outline | 217×130 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 1000:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193172% |
| response time | 8/8 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| viewing angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
