| Nama Wahi | CLAA090NA06CW |
| Waitohu | CPT |
| Rahi | 9.0 |
| Taupānga | CNS |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 800:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |

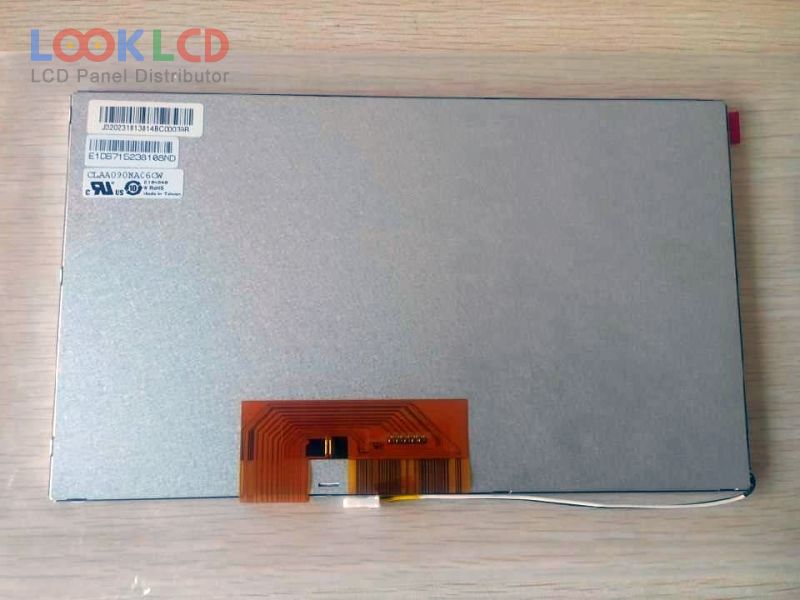

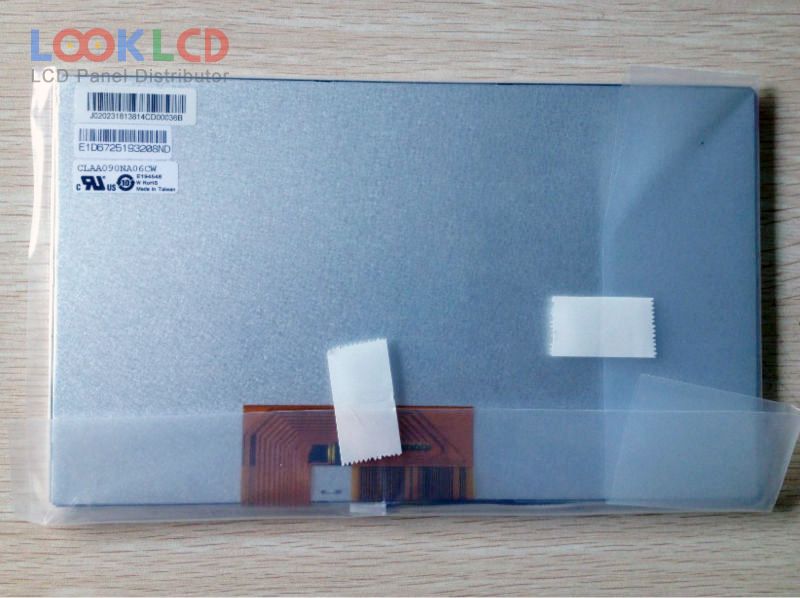

| panel model | CLAA090NA06CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 196.608×114.15 mm |
| outline | 211.1×126.5×6 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S13PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| input voltage | 3.3/9.6/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | CNS |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| CLAA090NA02CW | CPT | 9.0 | 1024×600 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| CLAA098EP01XG | CPT | 9.8 | 1280×960 |
| LTA090A220F | TOSHIBA | 9.0 | 800×480 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
| A061FW01 V0 | AUO | 6.1 | 480×234 |
| A070FW03 V6 | AUO | 7.0 | 480×234 |
| C070VAN01.3 | AUO | 7.0 | 800×480 |
| CLAA070JA1BCW | CPT | 7.0 | 480×234 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| HSD062IDW1-A00 | HannStar | 6.2 | 800×480 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB040Q04-TD01 | LG Display | 4.0 | 320×240 |
| LQ070Y5DG12 | SHARP | 7.0 | 800×480 |
| LQ080Y5DW03 | SHARP | 8.0 | 800×480 |
