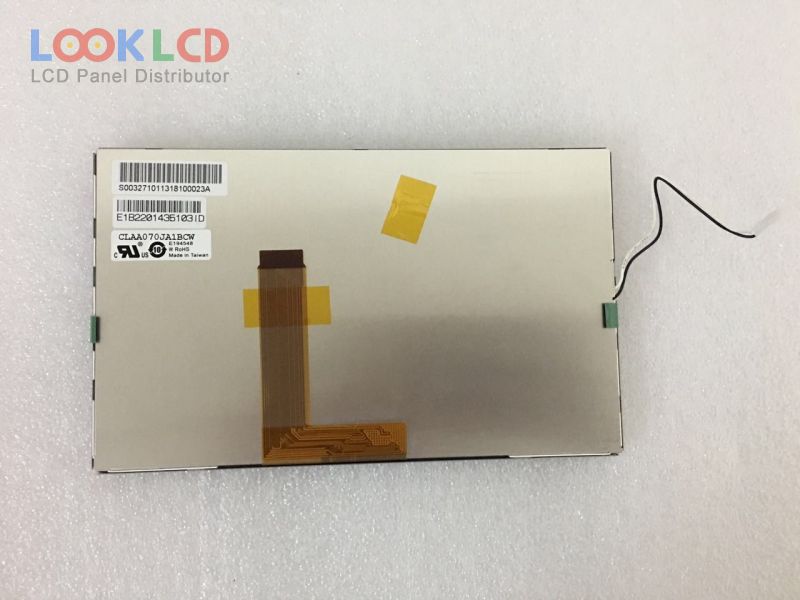

| Nama Wahi | CLAA070JA1BCW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 480×234 |
| Te tito | LCM |
| Tirohanga | 600 |
| CR | 400:1 |
| Nga Tae | Full color |
| Whakamuri | WLED |
| Atanga | Analog |
| panel brand | CPT |
| panel model | CLAA070JA1BCW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 480(RGB)×234 |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×86.58 mm |
| outline | 164.9×100×6 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 600 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | Full color |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S6PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| input voltage | 5.0/5.0/18.0/-6.0V (Typ.)(VDD/VCC/VGH/VGL) |
| application | CNS |
