| Nama Wahi | AM-1024600-070H |
| Waitohu | Other |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | |
| CR | |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | Amson |

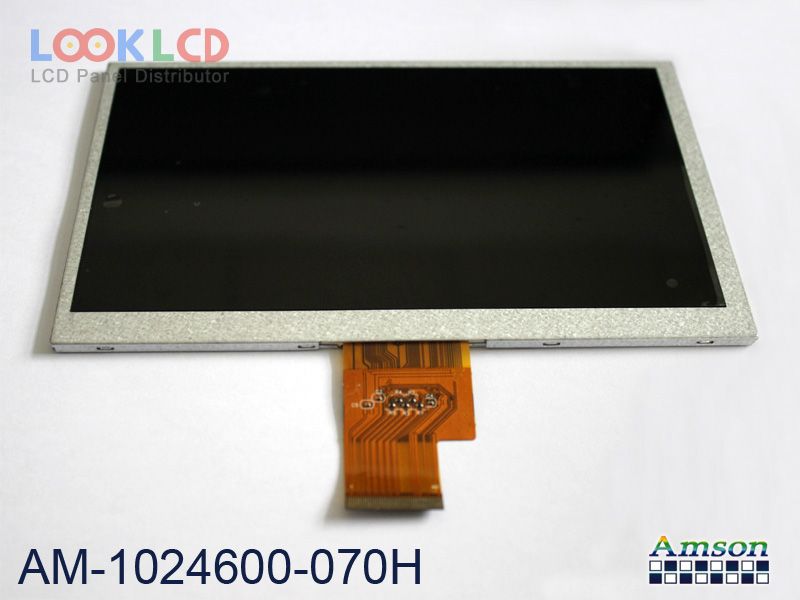

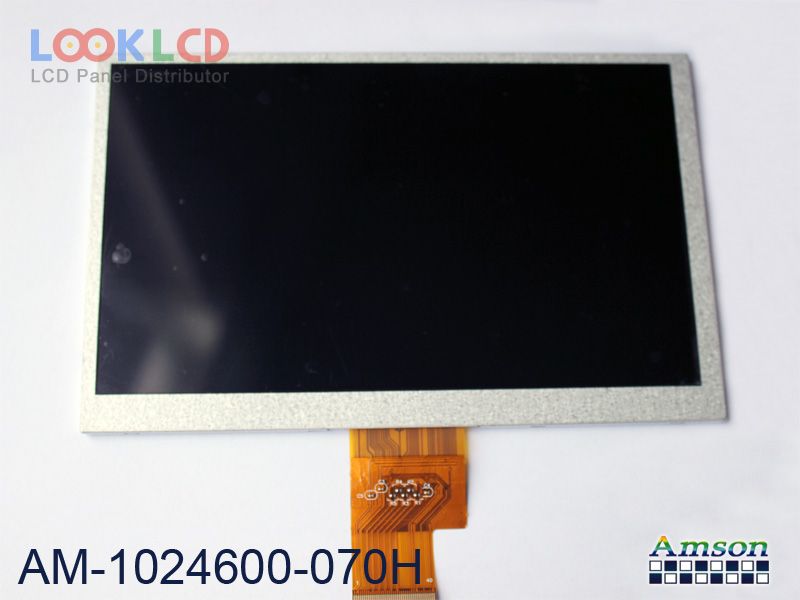

| panel model | AM-1024600-070H |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 153.6×90 mm |
| outline | 165.75×105.39×3.7 mm |
| surface | |
| brightness | |
| contrast ratio | |
| display colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| response time | |
| viewing angle | |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | CNS |
