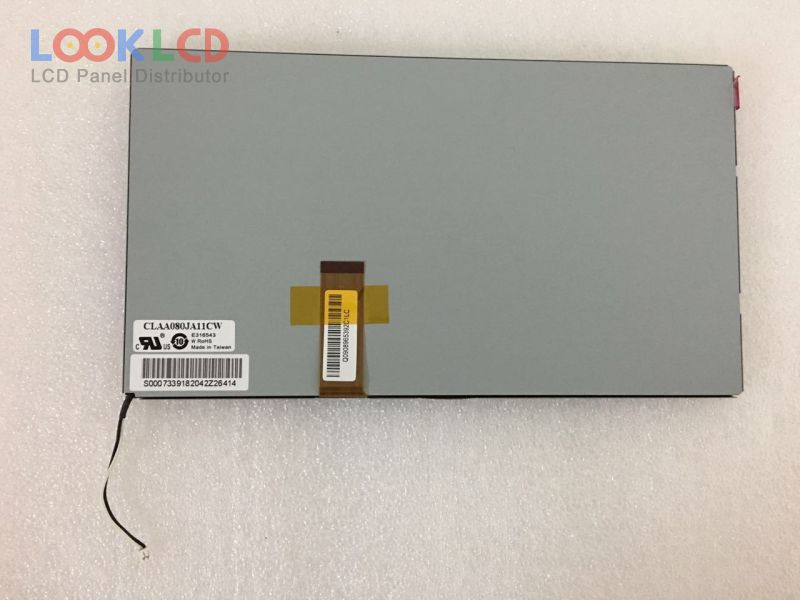

| Nama Wahi | CLAA080JA11CW |
| Waitohu | CPT |
| Rahi | 8.0 |
| Taupānga | CNS |
| Whakatau | 480×220 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 400:1 |
| Nga Tae | Full color |
| Whakamuri | WLED |
| Atanga | Analog |
| panel brand | CPT |
| panel model | CLAA080JA11CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 480(RGB)×220 |
| display mode | TN, Normally White, Transmissive |
| active area | 180.72×94.27 mm |
| outline | 193×108.3 mm |
| surface | Antiglare |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | Full color , CIE193145% |
| response time | 30 (Tr+Td) |
| viewing angle | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 3S7PWLED |
| signal interface | TFT Specific Analog RGB, 26 pins |
| input voltage | 5/5/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| application | CNS |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| LTE052T-45 | Philips | 5.0 | 320×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
