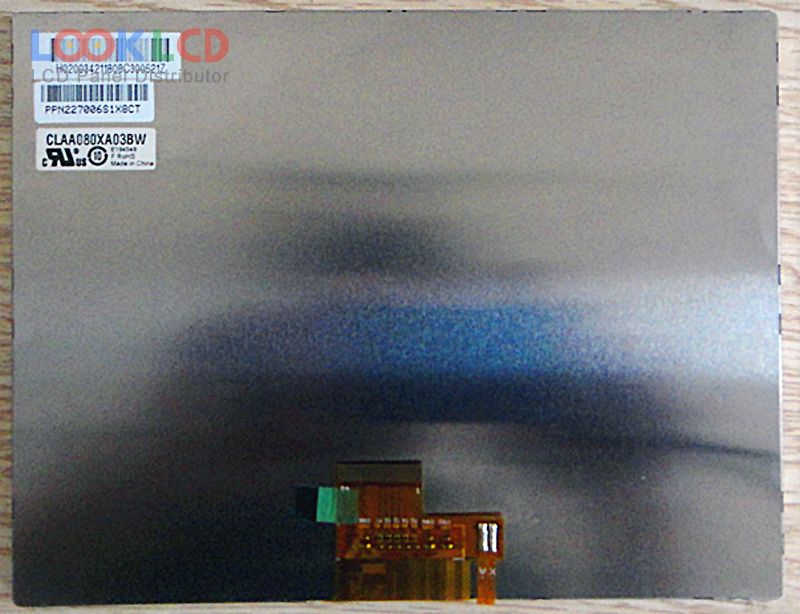

| Nama Wahi | CLAA080XA03BW |
| Waitohu | CPT |
| Rahi | 8.0 |
| Taupānga | DPF |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 700:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |
| panel model | CLAA080XA03BW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 162.048×121.536 mm |
| outline | 183×141×4 mm |
| surface | Antiglare |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) |
| display colors | 16.2M (6-bit + FRC), CIE193150% |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S11PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| input voltage | 3.3/9.6/18.0/-6.0V (Typ.)(VDD/AVDD/VGH/VHL) |
| application | DPF |
