| Nama Wahi | AT070TN84 |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | INNOLUX |

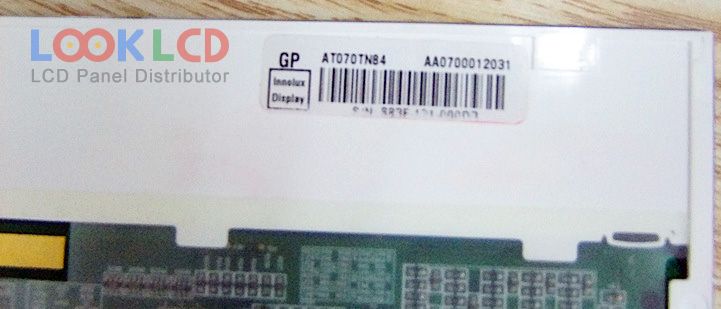

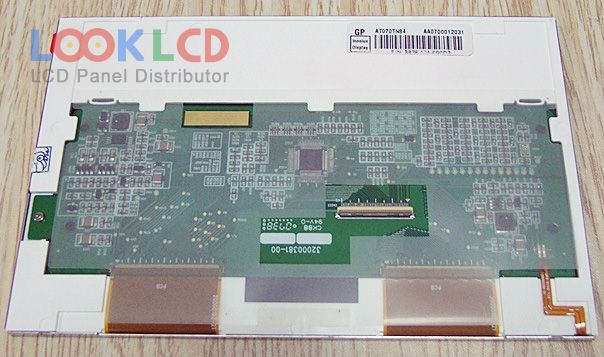

| panel model | AT070TN84 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104×5.8 mm |
| surface | Antiglare |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 10/15 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| application | DPF |
