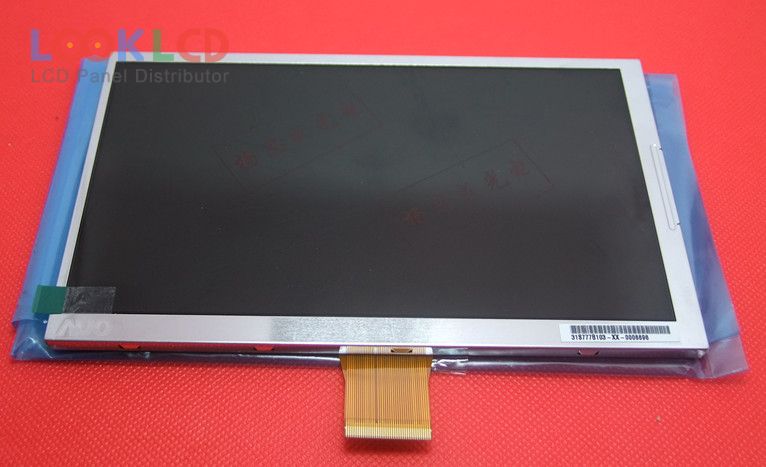

A070FW05 V1

A070FW05 V1
A070FW05 V1
A070FW05 V1
A070FW05 V1 thumb A070FW05 V1 thumb A070FW05 V1 thumb
Waitohu
AUO
Rahi
7.0
Taupānga
DPF
Whakatau
480×234
Te tito
LCM
Tirohanga
300
CR
300:1
Nga Tae
Whakamuri
WLED
Atanga
In Stock
1474
Whakatakotoranga

Nama Wahi A070FW05 V1
WaitohuAUO
Rahi7.0
TaupāngaDPF
Whakatau480×234
Te titoLCM
Tirohanga300
CR300:1
Nga Tae
WhakamuriWLED
Atanga
panel brandAUO
panel modelA070FW05 V1
panel type a-Si TFT-LCD , LCM
panel size7.0 inch
resolution480(RGB)×234
display modeTN, Normally White, Transmissive
active area154.08×86.58 mm
outline166.2×101.2 mm
surface
brightness300 cd/m² (Typ.)
contrast ratio300:1 (Typ.)
display colors
response time12/18 (Typ.)(Tr/Td)
viewing angle60/60/40/60 (Typ.)(CR≥10)(L/R/U/D)
lamp typeWLED
rohs:
applicationDPF
