| Nama Wahi | A070FW03 V1 |
| Waitohu | AUO |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 480×234 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 300:1 |
| Nga Tae | |
| Whakamuri | CCFL |
| Atanga | Analog |
| panel brand | AU Optronics |

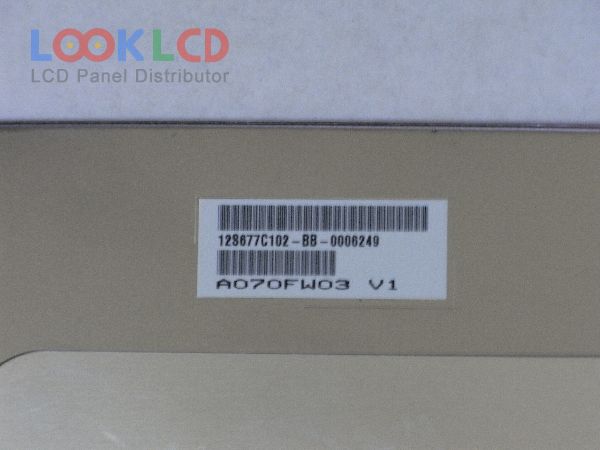

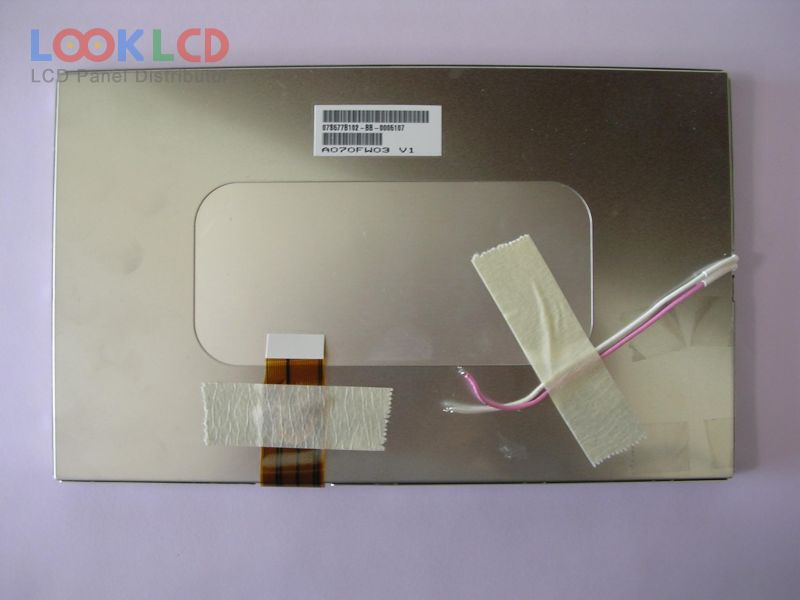

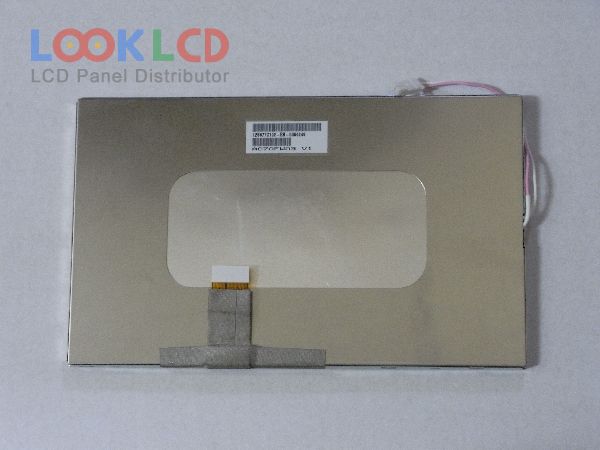

| panel model | A070FW03 V1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 480(RGB)×234 |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×86.58 mm |
| outline | 164.9×100 mm |
| surface | Antiglare (Haze 5.5%) |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | |
| response time | 12/18 (Typ.)(Tr/Td) |
| viewing angle | 65/65/40/65 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| input voltage | 5/5/15/-10V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | CNS |
