| Nama Wahi | AT070TN90 V.1 |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | CELL |
| Tirohanga | 0 |
| CR | 500:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | No B/L |
| Atanga | TTL |
| panel brand | CHIMEI INNOLUX |

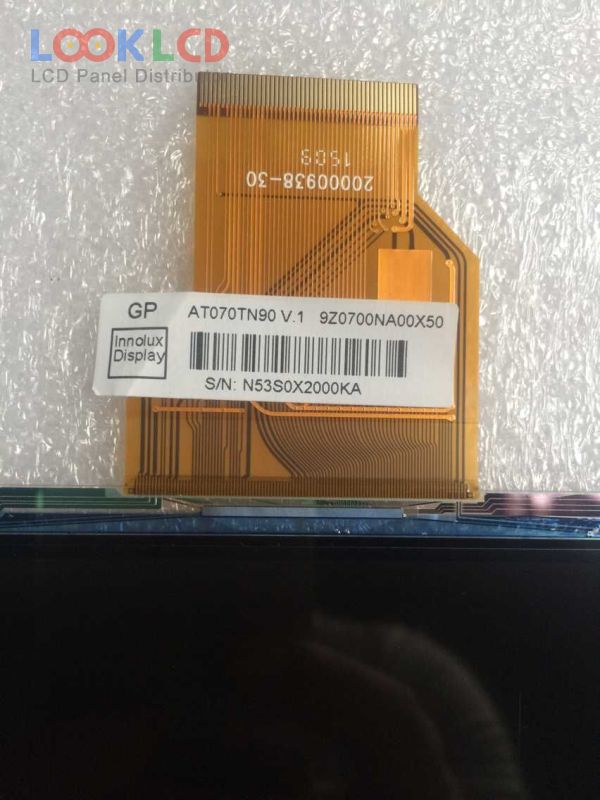

| panel model | AT070TN90 V.1 |
| panel type | a-Si TFT-LCD , CELL |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 154.08×85.92 mm |
| outline | 162.5×96.62 mm |
| surface | Antiglare |
| glass depth | 0.50+0.50 mm |
| transmissivity | 5.11% (Typ.)(with Polarizer) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| response time | 10/15 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| signal interface | Parallel RGB (1 ch, 8-bit), 50 pins |
| input voltage | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | DPF |
