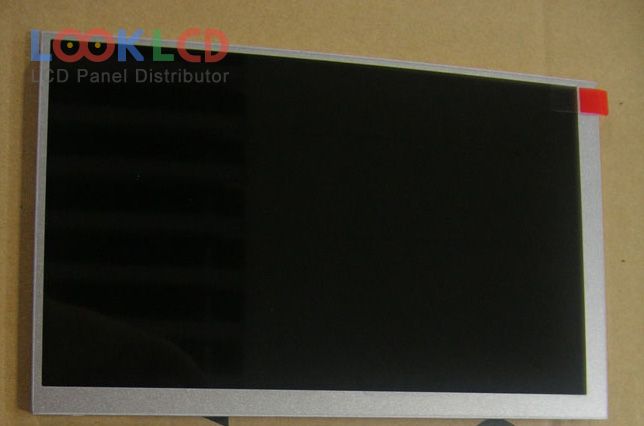

Innolux AT070TN83 V.1 Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com

AT070TN83 V.1


Waitohu
Innolux
Rahi
7.0
Taupānga
MP4
Whakatau
800×480
Te tito
LCM
Tirohanga
300
CR
500:1
Nga Tae
262K
Whakamuri
WLED
Atanga
TTL
In Stock
47840
Whakatakotoranga

Nama Wahi AT070TN83 V.1
WaitohuInnolux
Rahi7.0
TaupāngaMP4
Whakatau800×480
Te titoLCM
Tirohanga300
CR500:1
Nga Tae262K
WhakamuriWLED
AtangaTTL
panel brandINNOLUX
panel modelAT070TN83 V.1 1 Compatible model
panel type a-Si TFT-LCD , LCM
panel size7.0 inch
resolution800(RGB)×480 , WVGA
display modeTN, Normally White, Transmissive
active area152.4×91.44 mm
outline165×104×5.8 mm
surfaceAntiglare
brightness300 cd/m² (Typ.)
contrast ratio500:1 (Typ.)
display colors262K (6-bit)
response time10/15 (Typ.)(Tr/Td)
viewing angle70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)
signal interfaceTTL (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)(VCC)
applicationMP4
