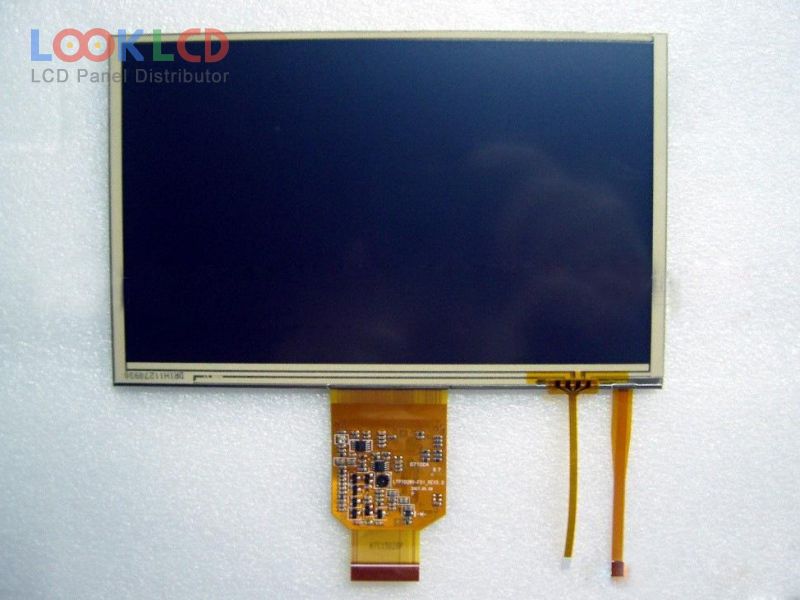

| Nama Wahi | LMS700KF01-001 |
| Waitohu | Samsung |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 280 |
| CR | 300:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | SAMSUNG |
| panel model | LMS700KF01-001 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800×480(RGB) , WVGA |
| display mode | TN, Normally White, TMR |
| active area | 152.4×91.44 mm |
| outline | 163.2×104×4.7 mm |
| surface | Hard coating (3H) |
| brightness | 280 cd/m² (Typ.) |
| contrast ratio | 300 : 1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 22.7 (Typ.)(Tr+Td) |
| viewing angle | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 8S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| application | MP4 |
