| Nama Wahi | LTL070AL03 |
| Waitohu | Samsung |
| Rahi | 7.0 |
| Taupānga | PAD |
| Whakatau | 800×1280 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 900:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | MIPI |
| panel brand | SAMSUNG |

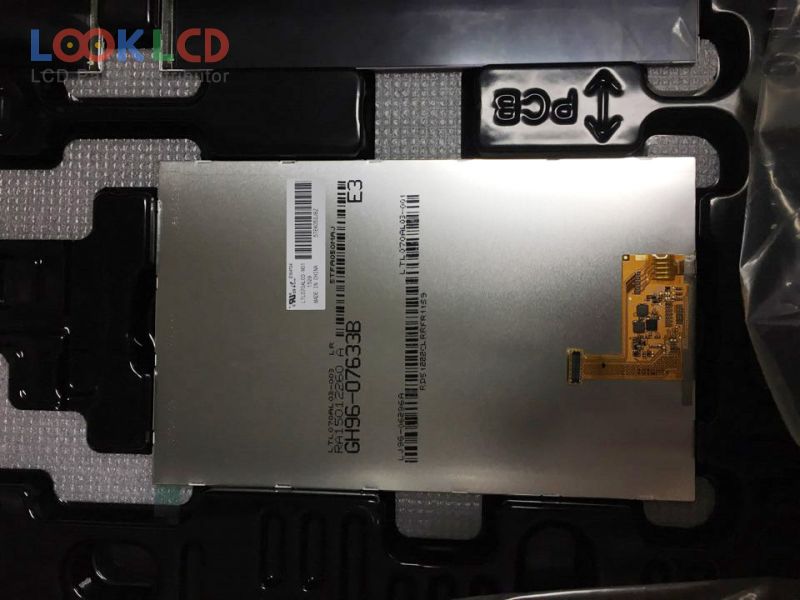

| panel model | LTL070AL03 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×1280 , WXGA |
| display mode | PLS, Normally Black, Transmissive |
| active area | 94.2×150.72 mm |
| outline | 99.7×160.93×3.6 mm |
| surface | Hard coating (2H), Antireflection |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 900:1 (Typ.) |
| display colors | 16.7M (8-bit), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4 stringsWLEDWithout Driver |
| signal interface | MIPI (4 data lanes), 34 pins |
| input voltage | 1.8/3.3V (Typ.)(VDD/VDD3) |
| application | PAD |
