| Nama Wahi | BF097XN |
| Waitohu | Innolux |
| Rahi | 9.7 |
| Taupānga | PAD |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 420 |
| CR | 900:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CHIMEI INNOLUX |

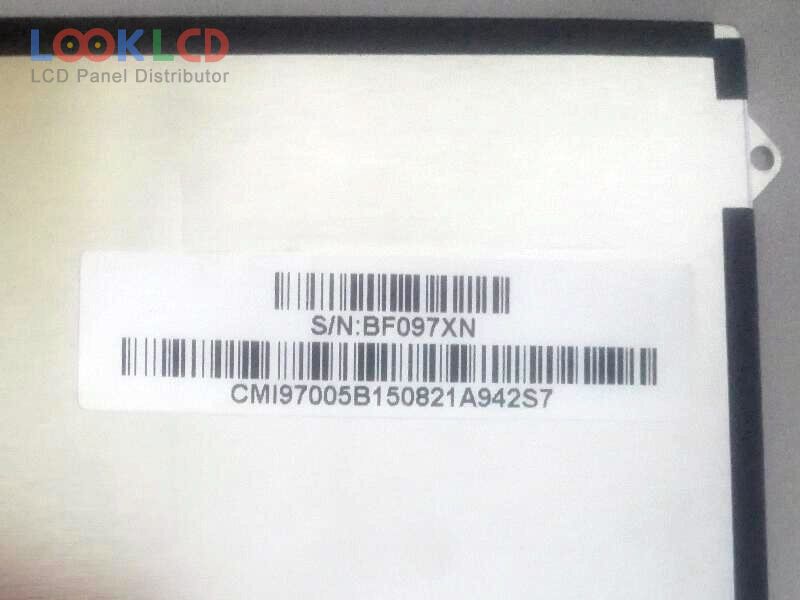

| panel model | BF097XN |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.7 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | IPS, Normally Black, Transmissive |
| active area | 196.608×147.456 mm |
| outline | 210×164.25×5.25 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 420 cd/m² (Typ.) |
| contrast ratio | 900:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 20 (Typ.)(G to G); 20 (Typ.)(Tr+Td) |
| viewing angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 6S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
