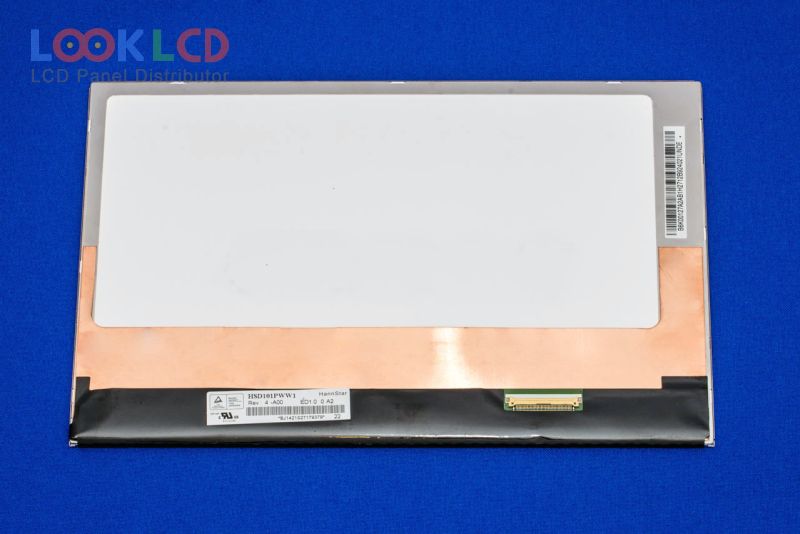

HSD101PWW1-A00 Rev.4

HSD101PWW1-A00 Rev.4
HSD101PWW1-A00 Rev.4 thumb
Waitohu
HannStar
Rahi
10.1
Taupānga
PAD
Whakatau
1280×800
Te tito
LCM
Tirohanga
350
CR
800:1
Nga Tae
262K
Whakamuri
WLED
Atanga
LVDS
In Stock
2500
Whakatakotoranga

Nama Wahi HSD101PWW1-A00 Rev.4
WaitohuHannStar
Rahi10.1
TaupāngaPAD
Whakatau1280×800
Te titoLCM
Tirohanga350
CR800:1
Nga Tae262K
WhakamuriWLED
AtangaLVDS
panel brandHannStar
panel modelHSD101PWW1-A00 Rev.4
panel type a-Si TFT-LCD , LCM
panel size10.1 inch
resolution1280(RGB)×800 , WXGA
display modeHS-IPS, Normally Black, Transmissive
active area216.96×135.6 mm
outline229.46×149.2×5.2 mm
surfaceGlare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
brightness350 cd/m² (Typ.)
contrast ratio800:1 (Typ.)
display colors262K (6-bit), CIE193145%
response time25 (Typ.)(Tr+Td)
viewing angle89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)
signal interfaceLVDS (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)
applicationPAD
