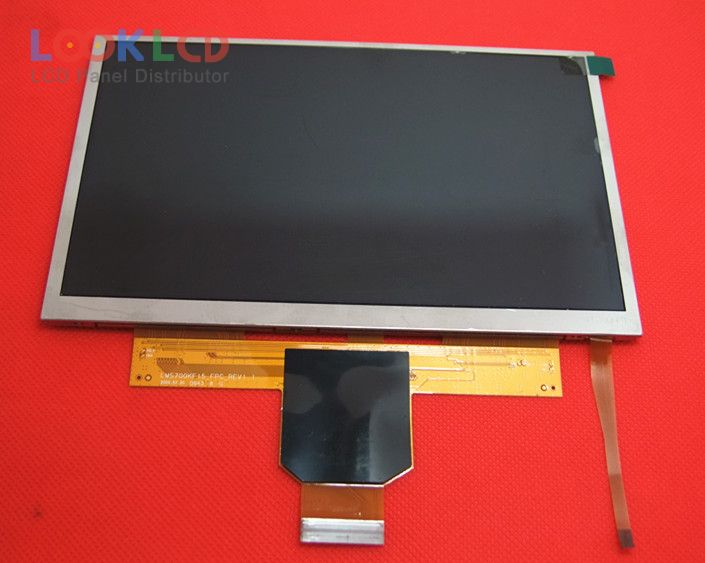

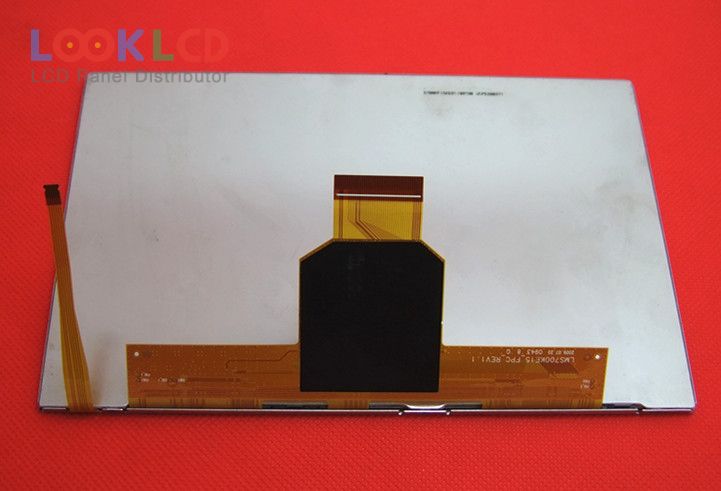

| Nama Wahi | LMS700KF15 |
| Waitohu | Samsung |
| Rahi | 7.0 |
| Taupānga | MP4 |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 700:1 |
| Nga Tae | 16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | SAMSUNG |
| panel model | LMS700KF15 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, TMR |
| active area | 152.4×91.44 mm |
| outline | 163.2×104×3.6 mm |
| surface | |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 700 : 1 (Typ.) |
| display colors | 16.2M (6-bit + FRC) |
| response time | 16 (Typ.)(Tr+Td) |
| viewing angle | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 8S3PWLEDWithout Driver |
| signal interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| input voltage | 3.3V (Typ.)(VCC) |
| application | MP4 |
| LA070WV4-SD04 | LG Display | 7.0 | 800×480 |
| LMS700JF01-001 | Samsung | 7.0 | 1024×600 |
| LMS700JF04-0 | Samsung | 7.0 | 1024×600 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LMS700KF06 | Samsung | 7.0 | 800×480 |
| LMS700KF07 | Samsung | 7.0 | 800×480 |
| LMS700KF15 | Samsung | 7.0 | 800×480 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| BA070WS1-100 | BOE | 7.0 | 1024×600 |
| CLAA070LC0DCW | CPT | 7.0 | 800×480 |
| CLAA070ND02 | CPT | 7.0 | 1024×600 |
| EE070NA-01D | Innolux | 7.0 | 1024×600 |
| HV070WS1-1E1 | HYDIS | 7.0 | 1024×600 |
| LB040Q03-TD01 | LG Display | 4.0 | 320×240 |
| LB070WV6-TD06 | LG Display | 7.0 | 800×480 |
| LMS700KF05 | Samsung | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
