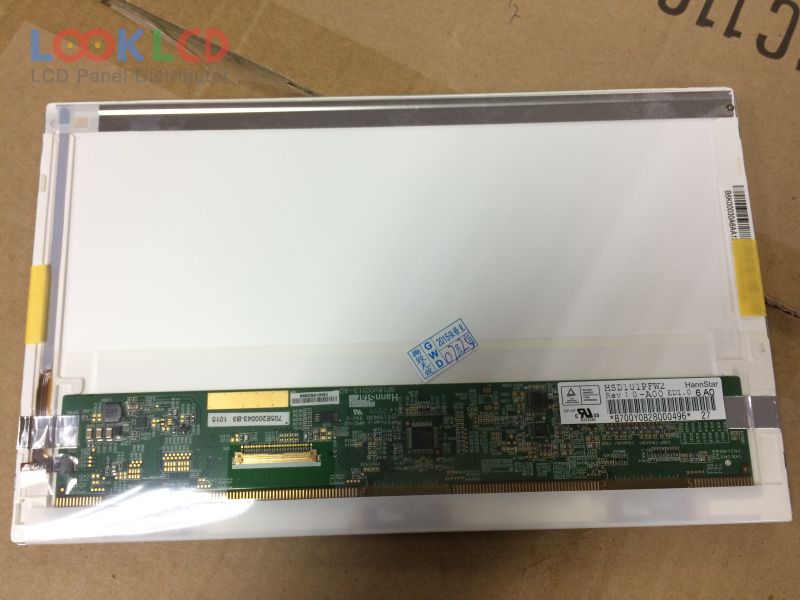

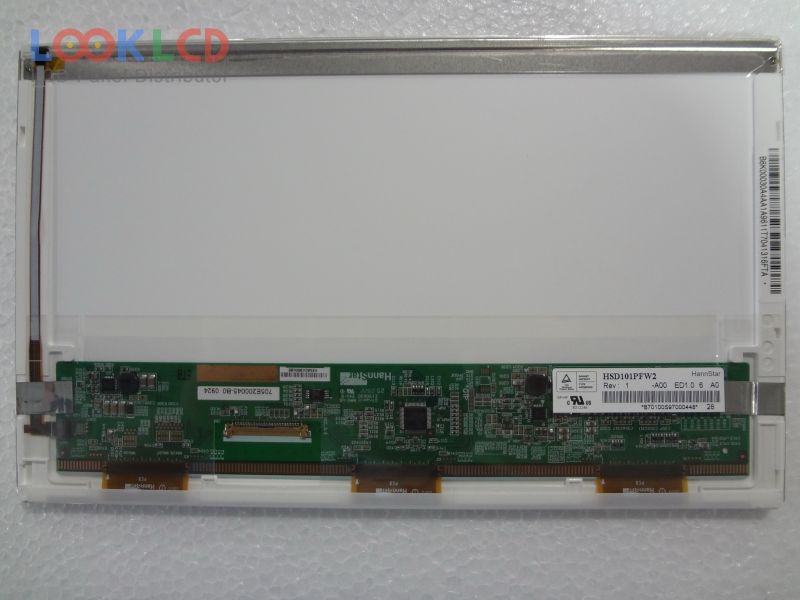

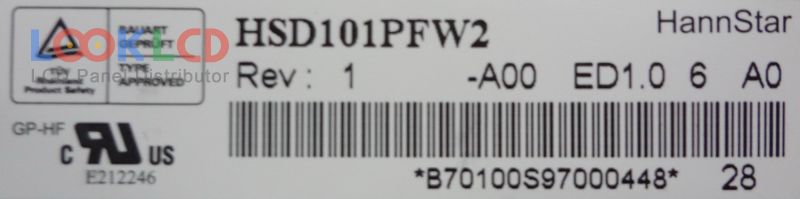

| Nama Wahi | HSD101PFW2-A00 |
| Waitohu | HannStar |
| Rahi | 10.1 |
| Taupānga | DPF |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HannStar |
| panel model | HSD101PFW2-A00 13 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 222.72×125.28 mm |
| outline | 235×143×5.2 mm |
| surface | Glare (Haze 0%), Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 4/12 (Typ.)(Tr/Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 24 pcsWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.2V (Typ.) |
| application | DPF |
| HSD101PFW1-A01 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-B00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW3-D00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-B00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-B00-C11 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F01 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| A080SN01 V8 | AUO | 8.0 | 800×600 |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| AT102TN03 V.9 | Innolux | 10.2 | 800×480 |
| HSD100IFW1-F01 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LB070WV1-TD08 | LG Display | 7.0 | 800×480 |
| LB070WV1-TD17 | LG Display | 7.0 | 800×480 |
| PA079DS1T2 | E Ink | 7.9 | 480×234 |
