| Nama Wahi | AT080TN01 |
| Waitohu | Innolux |
| Rahi | 8.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |

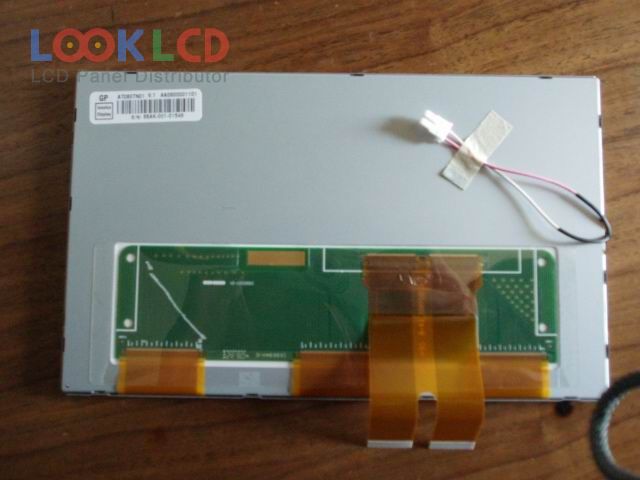

| panel brand | INNOLUX |
| panel model | AT080TN01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 176.64×99.36 mm |
| outline | 192.8×116.9×6.7 mm |
| surface | Antiglare |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 15/20 (Typ.)(Tr/Td) |
| viewing angle | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| input voltage | 3.3/10.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| application | DPF |
| AT080TN01 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.2 | Innolux | 8.0 | 800×480 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| AT080TN42 | Innolux | 8.0 | 800×600 |
| AT080TN42 V.1 | Innolux | 8.0 | 800×600 |
| AT080TN43 | Innolux | 8.0 | 800×600 |
| AT080TN52 | Innolux | 8.0 | 800×600 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| A070FW05 V1 | AUO | 7.0 | 480×234 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| AT102TN03 V.9 | Innolux | 10.2 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| LQ085Y3DG01 | SHARP | 8.5 | 800×480 |
| TM104SDHG30 | Tianma | 10.4 | 800×600 |
| TR-LM7WR3PS | Panasonic | 7.0 | 480×234 |
