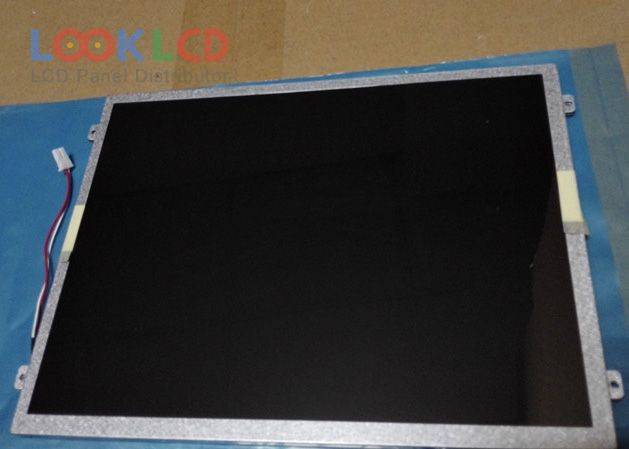

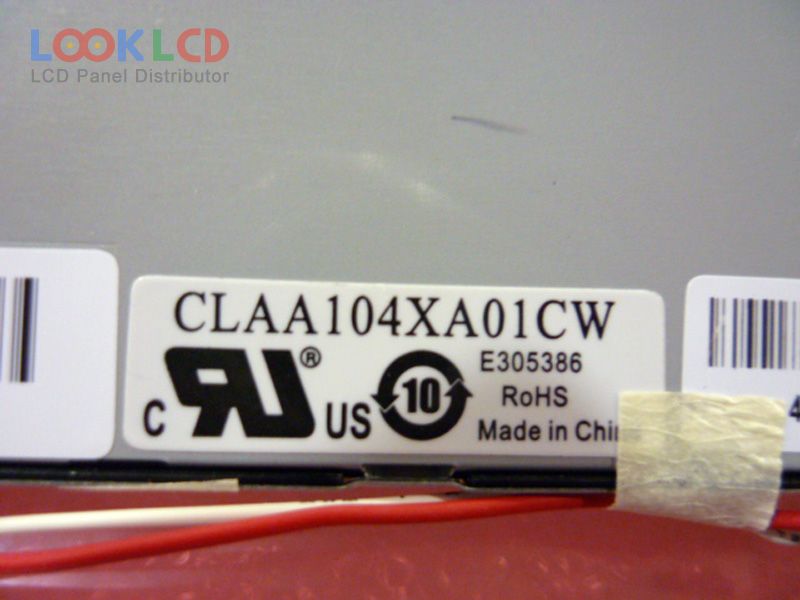

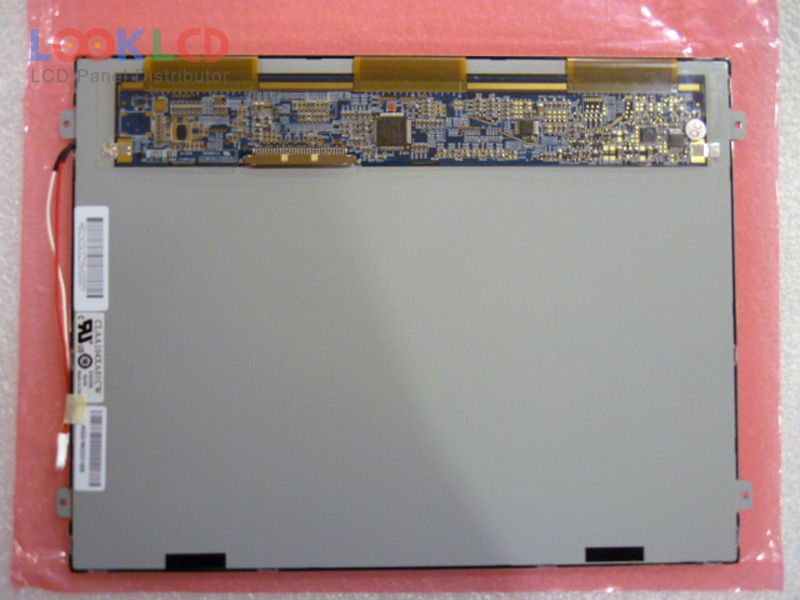

| Nama Wahi | CLAA104XA01CW |
| Waitohu | CPT |
| Rahi | 10.4 |
| Taupānga | DPF |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | LVDS |
| panel brand | CPT |
| panel model | CLAA104XA01CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.4 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 211.2×158.4 mm |
| outline | 236×174.3 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 25 (Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | DPF |
