AT056TN53 V.1

AT056TN53 V.1
AT056TN53 V.1
AT056TN53 V.1
AT056TN53 V.1 thumb AT056TN53 V.1 thumb AT056TN53 V.1 thumb
Waitohu
Innolux
Rahi
5.6
Taupānga
DPF
Whakatau
640×480
Te tito
LCM
Tirohanga
350
CR
500:1
Nga Tae
262K
Whakamuri
WLED
Atanga
TTL
In Stock
21910
Whakatakotoranga

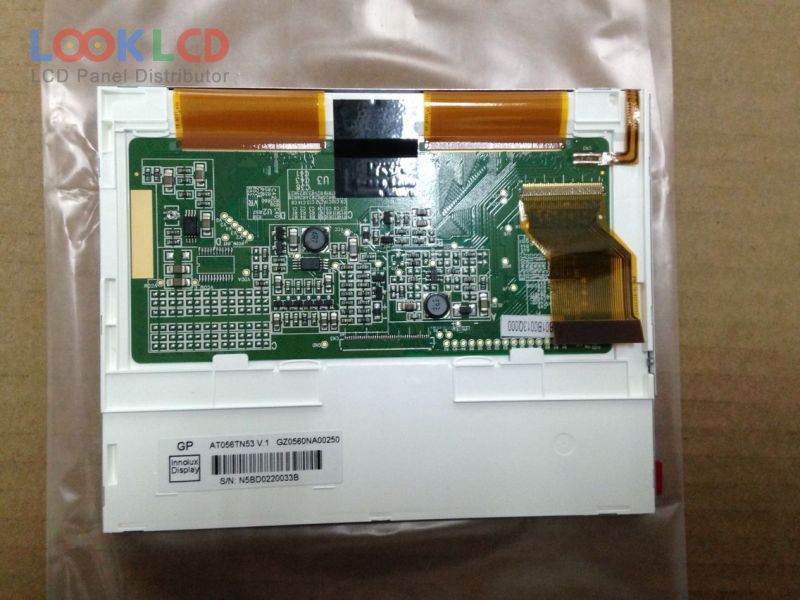

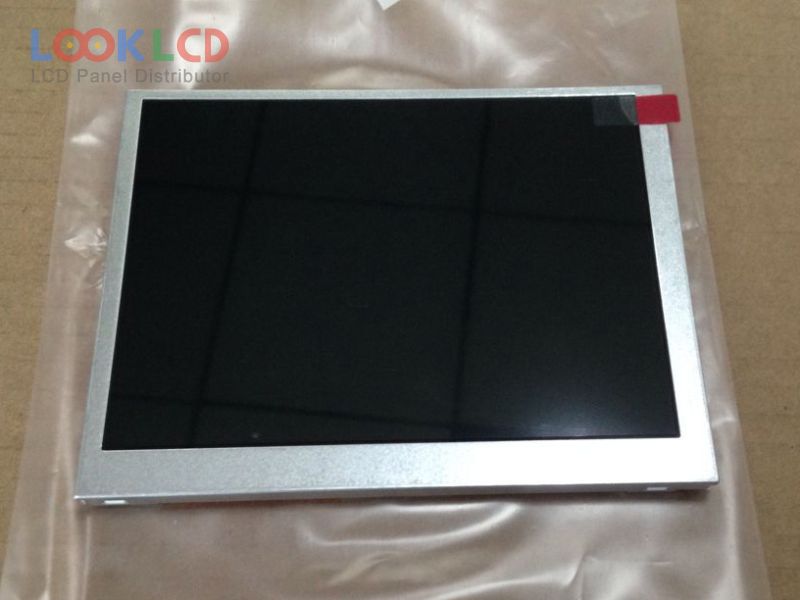

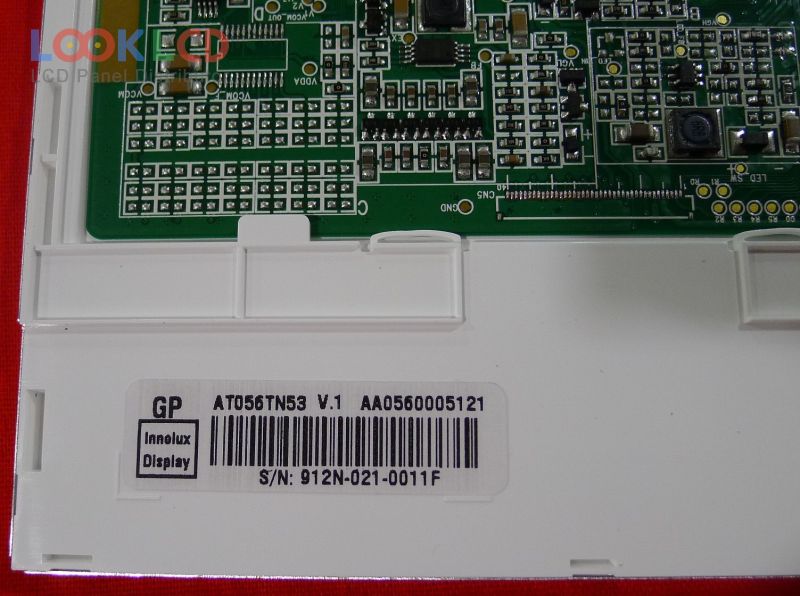

Nama Wahi AT056TN53 V.1
WaitohuInnolux
Rahi5.6
TaupāngaDPF
Whakatau640×480
Te titoLCM
Tirohanga350
CR500:1
Nga Tae262K
WhakamuriWLED
AtangaTTL
panel brandINNOLUX
panel modelAT056TN53 V.1
panel type a-Si TFT-LCD , LCM
panel size5.6 inch
resolution640(RGB)×480 , VGA
display modeTN, Normally White, Transmissive
active area112.896×84.672 mm
outline126.5×100 mm
surfaceAntiglare
brightness350 cd/m² (Typ.)
contrast ratio500:1 (Typ.)
display colors262K (6-bit), CIE193150%
response time10/15 (Typ.)(Tr/Td)
viewing angle70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
lamp typeWLEDEmbedded (LED Driver)
signal interfaceParallel RGB (1 ch, 6-bit), 40 pins
input voltage3.3V (Typ.)(VCC)
rohs:
applicationDPF
