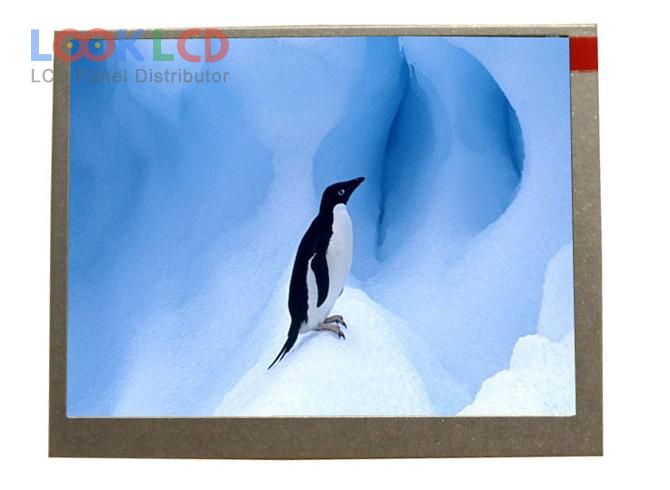

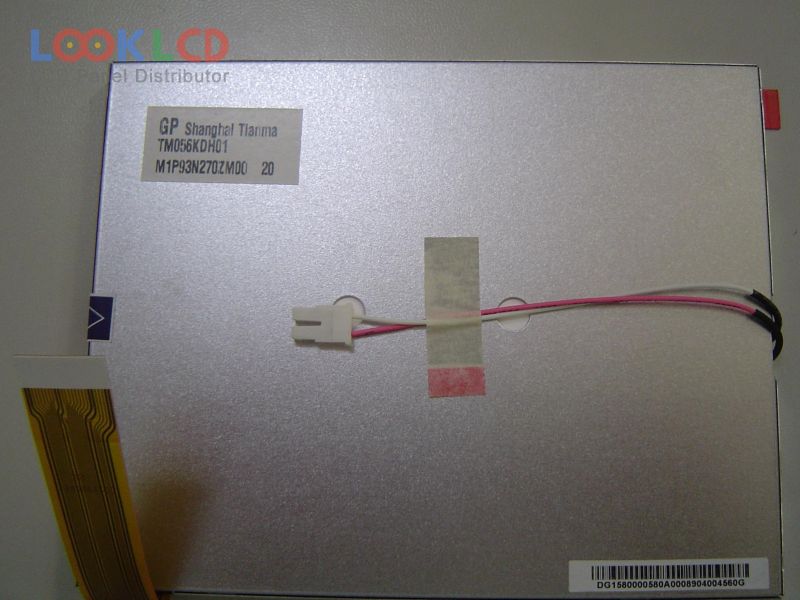

| Nama Wahi | TM056KDH01 |
| Waitohu | Tianma |
| Rahi | 5.6 |
| Taupānga | VDP |
| Whakatau | 320×234 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 300:1 |
| Nga Tae | Full color |
| Whakamuri | WLED |
| Atanga | Analog |
| panel brand | TIANMA |
| panel model | TM056KDH01 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.6 inch |
| resolution | 320(RGB)×234 |
| display mode | TN, Normally White, Transmissive |
| active area | 113.28×84.708 mm |
| outline | 126.5×100 mm |
| surface | Antiglare |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | Full color , CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 2S7PWLEDWithout Driver |
| signal interface | TFT Specific Analog RGB, 26 pins |
| input voltage | 5.0/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | VDP |
| A056DN01 | AUO | 5.6 | 320×234 |
| A056DN01 V2 | AUO | 5.6 | 320×234 |
| A070FW03 V3 | AUO | 7.0 | 480×234 |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| LB065W01-B11B | LG Display | 6.5 | 400×234 |
| LQ050A3AD01 | SHARP | 5.0 | 320×234 |
| LR700BA9005 | Innolux | 7.0 | 480×234 |
| LTA065B096D | TOSHIBA | 6.5 | 400×234 |
| PA050XSH | E Ink | 5.0 | 320×234 |
| TM056KDH01 | Tianma | 5.6 | 320×234 |
