| Nama Wahi | CLAA101ND02CW |
| Waitohu | CPT |
| Rahi | 10.1 |
| Taupānga | DPF |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | |
| CR | 600:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | CPT |

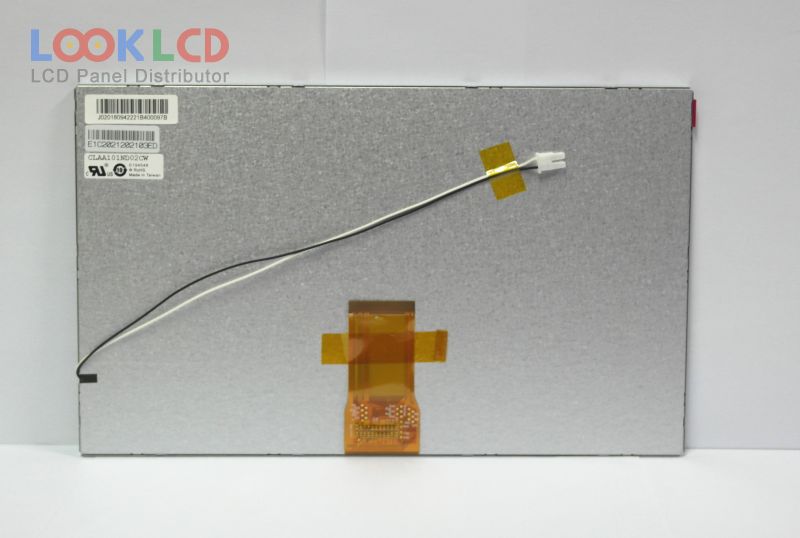

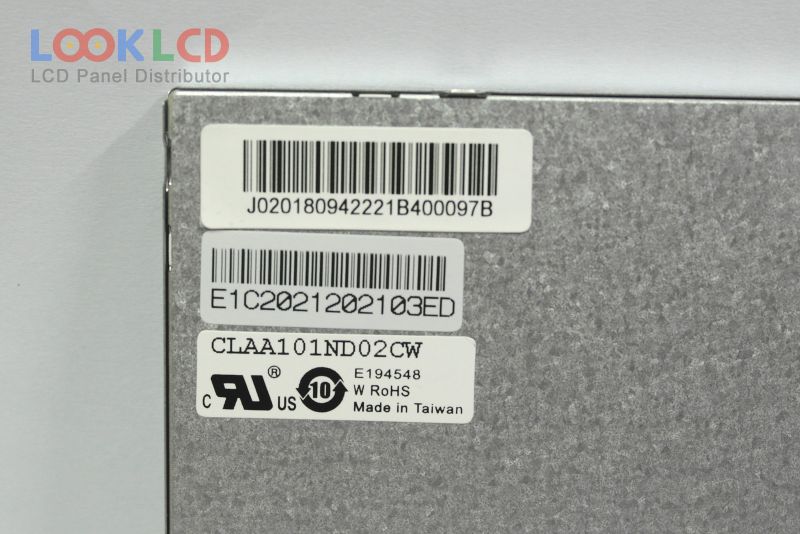

| panel model | CLAA101ND02CW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 222.72×125.28 mm |
| surface | Antiglare |
| brightness | |
| contrast ratio | 600:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 50 pins |
| application | DPF |
