| Nama Wahi | LB104S02-TD01 |
| Waitohu | LG Display |
| Rahi | 10.4 |
| Taupānga | DPF |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |

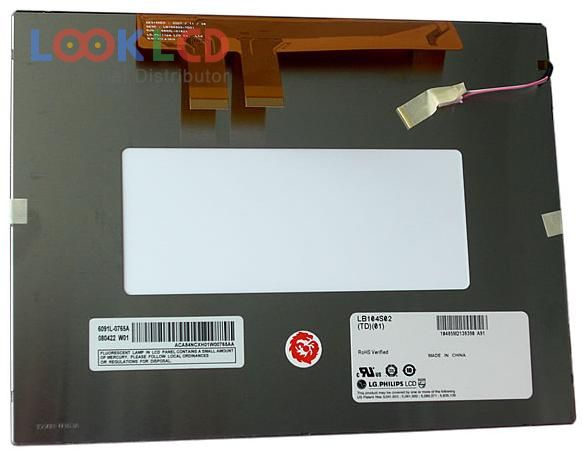

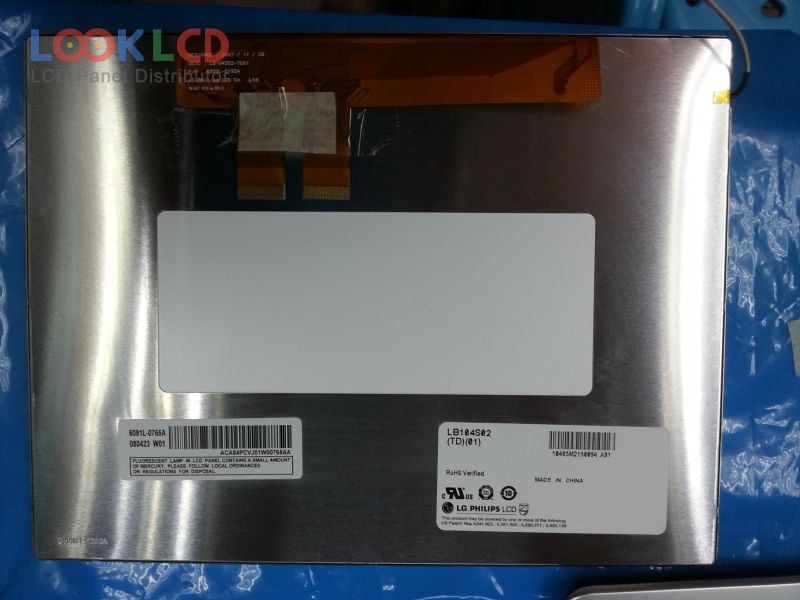

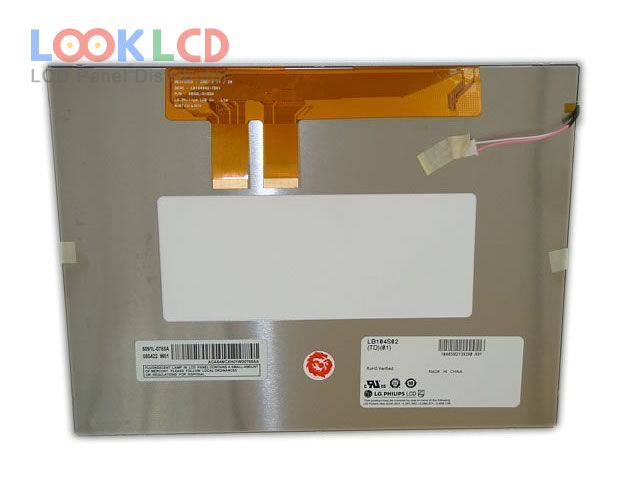

| panel brand | LG Display |
| panel model | LB104S02-TD01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.4 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 211.2×158.4 mm |
| outline | 234.7×178.6 mm |
| surface | Antiglare |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 6/19 (Typ.)(Tr/Td) |
| viewing angle | 65/65/55/50 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 1 pcsCCFLWithout Driver |
| signal interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| input voltage | 3.3/9.32/17.55/-4.99V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | DPF |
