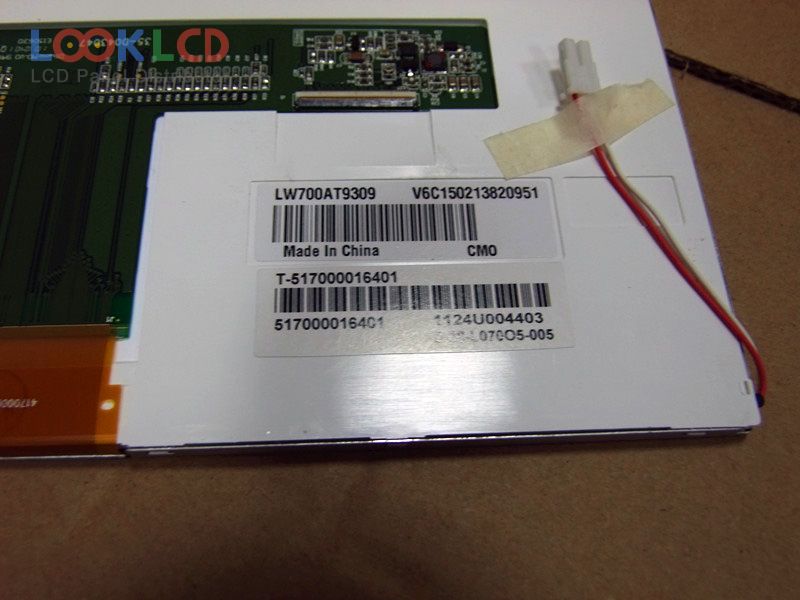

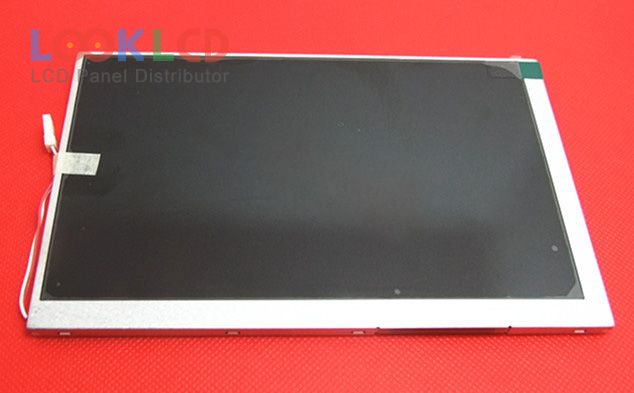

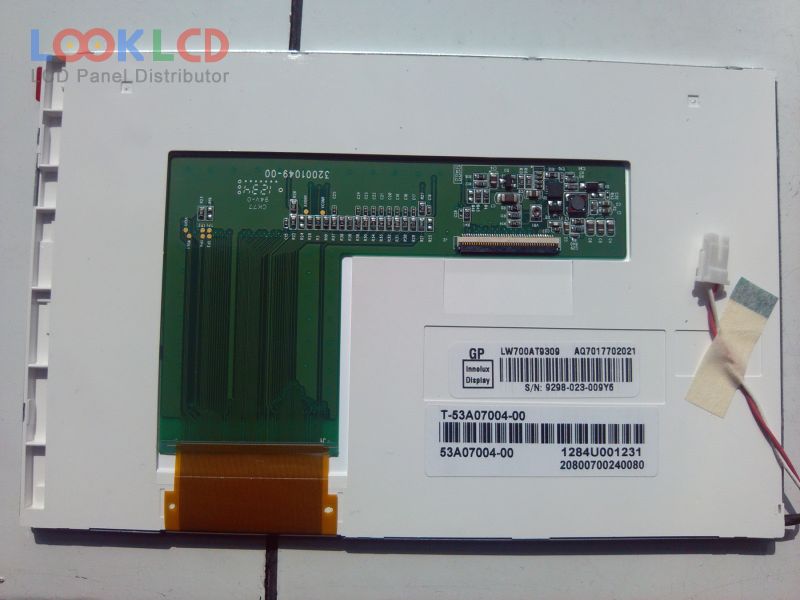

| Nama Wahi | LW700AT9309 |
| Waitohu | Innolux |
| Rahi | 7.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 350 |
| CR | 400:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | ChiHsin |
| panel model | LW700AT9309 1 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 152.4×91.44 mm |
| outline | 165×104.44×5.9 mm |
| surface | Antiglare |
| brightness | 350 cd/m² (Typ.) |
| contrast ratio | 400:1 (Typ.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 5/11 (Typ.)(Tr/Td) |
| viewing angle | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S8PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | DPF |
| AT070TN83 V.1 | Innolux | 7.0 | 800×480 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| LT070ME05000 | JDI | 7.0 | 1200×1920 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| LW700AT9008 | Innolux | 7.0 | 800×480 |
| LW700AT9009 | Innolux | 7.0 | 800×480 |
| LW700AT9309 | Innolux | 7.0 | 800×480 |
| LW700AT9901 | Innolux | 7.0 | 800×480 |
| A080SN01 V0 | AUO | 8.0 | 800×600 |
| AT080TN03 V.7 | Innolux | 8.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| EJ080NA-04C | Innolux | 8.0 | 1024×768 |
| EJ080NA-05A | Innolux | 8.0 | 800×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| HSD084ISN1-A01 | HannStar | 8.4 | 800×600 |
| LQ085Y3DG12 | SHARP | 8.5 | 800×480 |
| LTE700WQ-F05 | Samsung | 7.0 | 480×234 |
