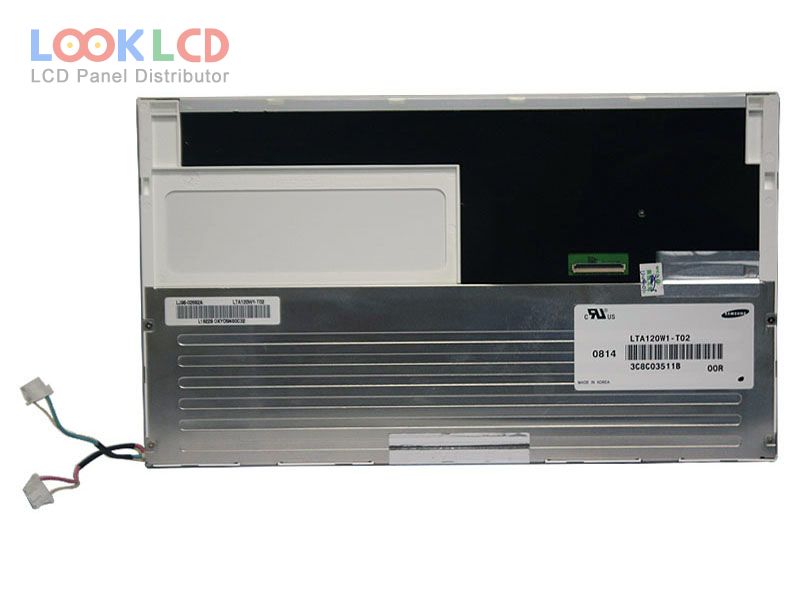

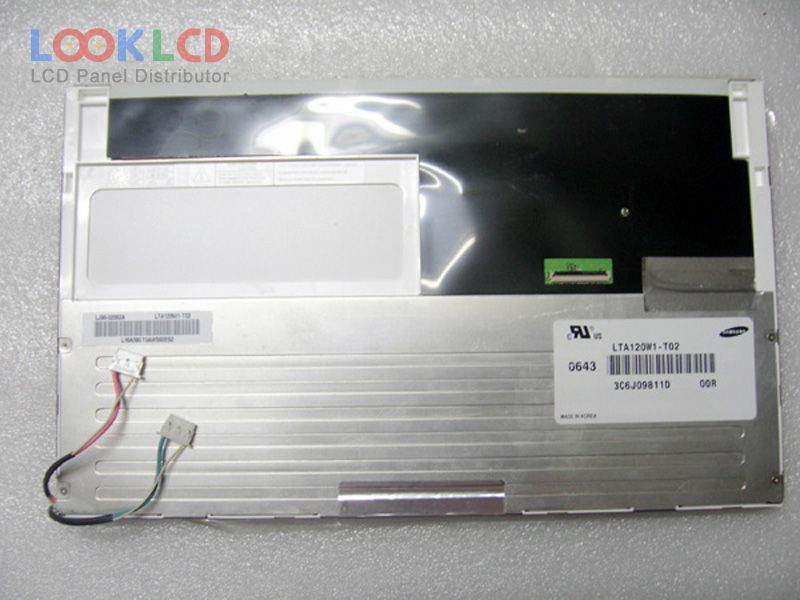

| Nama Wahi | LTA120W1-T02 |
| Waitohu | Samsung |
| Rahi | 12.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 300:1 |
| Nga Tae | 262K |
| Whakamuri | CCFL |
| Atanga | TTL |
| panel brand | SAMSUNG |
| panel model | LTA120W1-T02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 261.6×156.96 mm |
| outline | 281.3×171.4 mm |
| surface | |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 300:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | |
| viewing angle | |
| lamp type | 2 pcsCCFL |
| signal interface | TTL (1 ch, 6-bit) |
| rohs: | |
| application | DPF |
