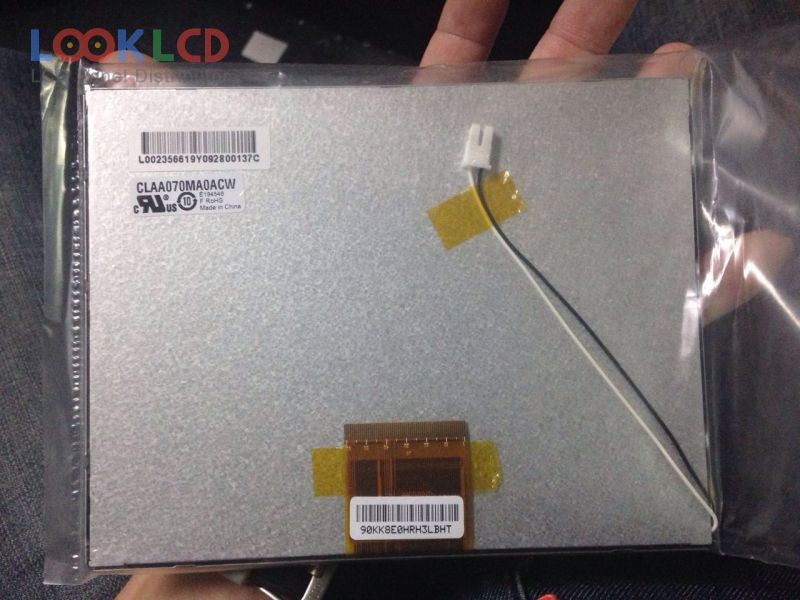

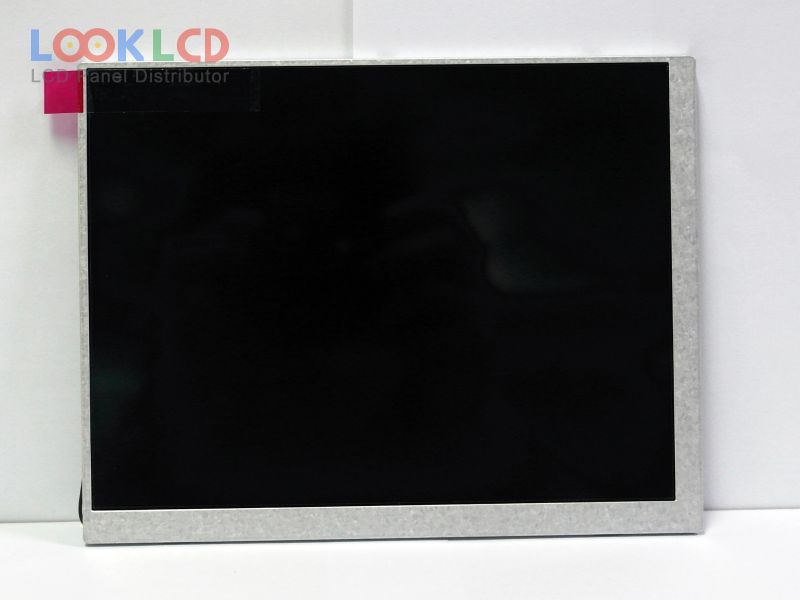

| Nama Wahi | CLAA070MA0ACW |
| Waitohu | CPT |
| Rahi | 7.0 |
| Taupānga | DPF |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 500:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | CPT |
| panel model | CLAA070MA0ACW |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 141.6×106.2 mm |
| outline | 154×119.2×5.4 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| response time | 20 (Typ.)(Tr+Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 3S6PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| input voltage | 3.3/9.6/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | DPF |
