| Nama Wahi | HSD070IDW1-A00 |
| Waitohu | HannStar |
| Rahi | 7.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | HannStar |
| panel model | HSD070IDW1-A00 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 153.6×86.64 mm |
| outline | 165×104×5.4 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| response time | 5/20 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | 3S7PWLEDWithout Driver |

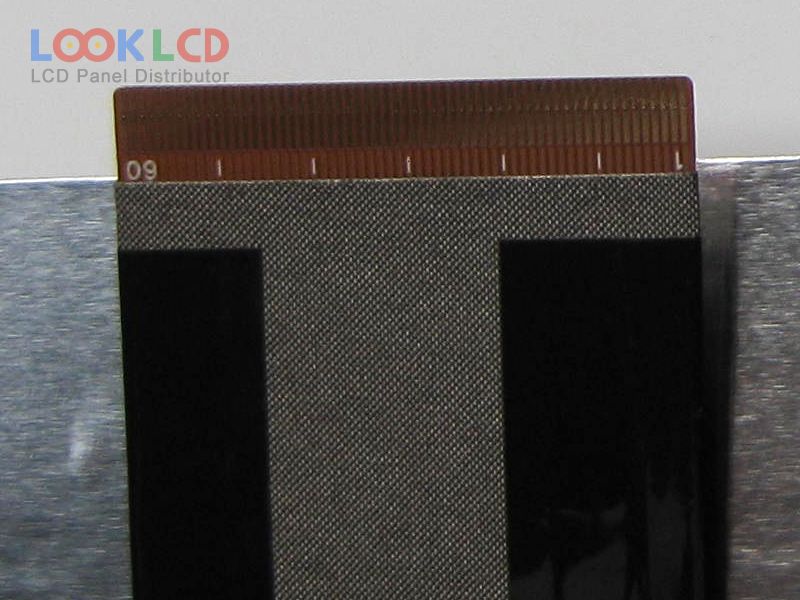

| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| input voltage | 3.0/10.0/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | DPF |
| HSD070I651-C02 | HannStar | 7.0 | 480×234 |
| HSD070I651-F20 | HannStar | 7.0 | 480×234 |
| HSD070IDW1-A00 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A20 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A21 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD070IDW1-E11 | HannStar | 7.0 | 800×480 |
| HSD070IFW1-A00 | HannStar | 7.0 | 1024×600 |
| HSD070IFW1-B00 | HannStar | 7.0 | 1024×600 |
| HSD070ISN1-D00 | HannStar | 7.0 | 800×600 |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| A104SN03 V1 | AUO | 10.4 | 800×600 |
| AT080TN03 V.1 | Innolux | 8.0 | 800×480 |
| CLAA080XA01BW | CPT | 8.0 | 1024×768 |
| HSD070IDW1-A30 | HannStar | 7.0 | 800×480 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-B01 | HannStar | 10.1 | 1024×600 |
| LB084S02-TD01 | LG Display | 8.4 | 800×600 |
| LB104S02-TD01 | LG Display | 10.4 | 800×600 |
| PM102ZY2 | E Ink | 10.2 | 1024×600 |
