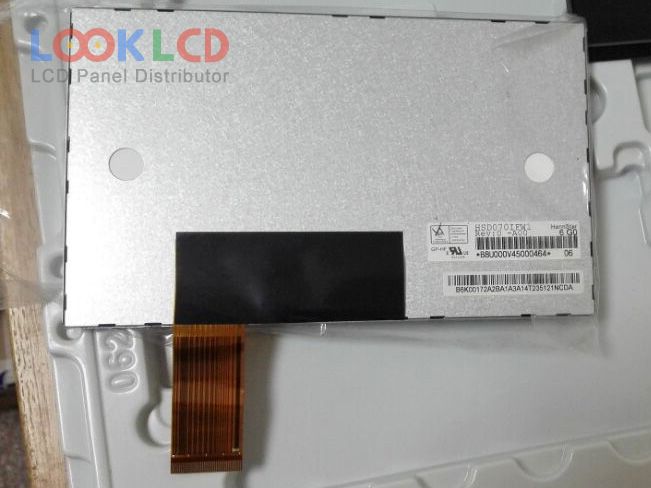

| Nama Wahi | HSD070IFW1-A00 |
| Waitohu | HannStar |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 600 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HannStar |
| panel model | HSD070IFW1-A00 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 153.6×86.64 mm |
| outline | 164.9×100×7.3 mm |
| surface | Antiglare |
| brightness | 600 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193150% |
| response time | 4/12 (Typ.)(Tr/Td) |
| viewing angle | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| input voltage | 3.3/9.5/18/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| application | CNS |
