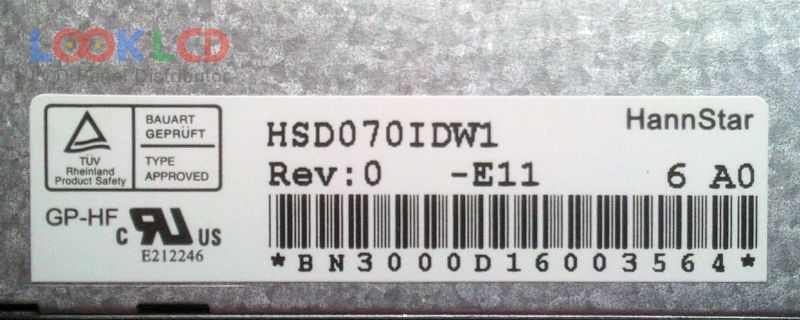

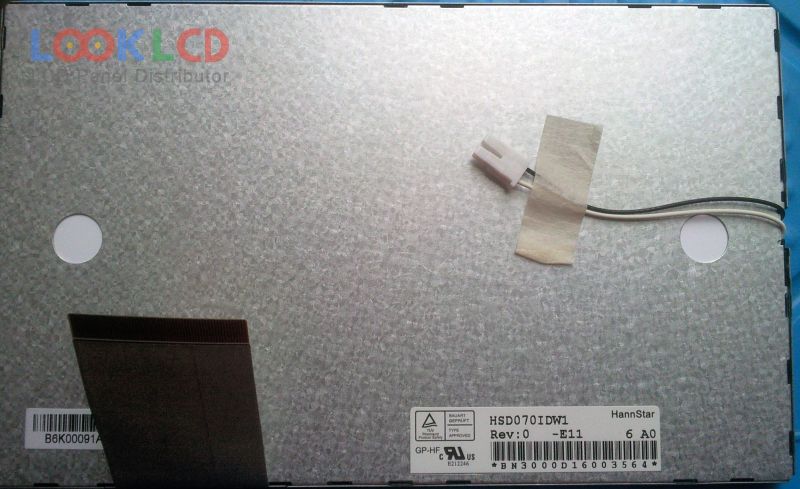

| Nama Wahi | HSD070IDW1-E11 |
| Waitohu | HannStar |
| Rahi | 7.0 |
| Taupānga | CNS |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 450 |
| CR | 500:1 |
| Nga Tae | 262K/16.2M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | HannStar |
| panel model | HSD070IDW1-E11 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 153.6×86.64 mm |
| outline | 164.9×100×6 mm |
| surface | Antiglare, Hard coating (3H) |
| brightness | 450 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.2M (6-bit / 6-bit + FRC), CIE193150% |
| response time | 5/20 (Typ.)(Tr/Td); |
| viewing angle | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S9PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 60 pins |
| input voltage | 3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | CNS |
