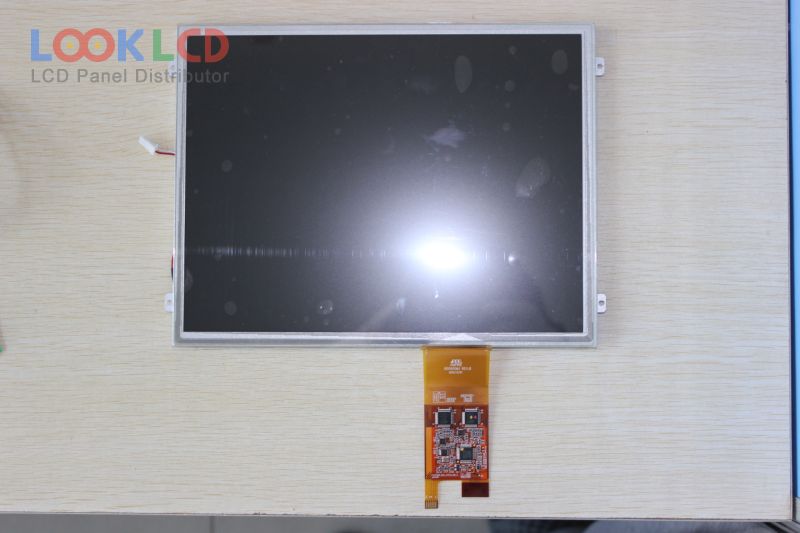

| Nama Wahi | AM-1024768M2TMQW-T00H |
| Waitohu | AMPIRE |
| Rahi | 9.7 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 425 |
| CR | |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | AMPIRE |
| panel model | AM-1024768M2TMQW-T00H |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.7 inch |
| resolution | 1024(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 211.2×127.7 mm |
| outline | 236×175 mm |
| surface | |
| brightness | 425 cd/m² (Typ.) |
| contrast ratio | |
| display colors | 262K (6-bit), CIE193147% |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 75/75/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S13PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6-bit), 30 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
