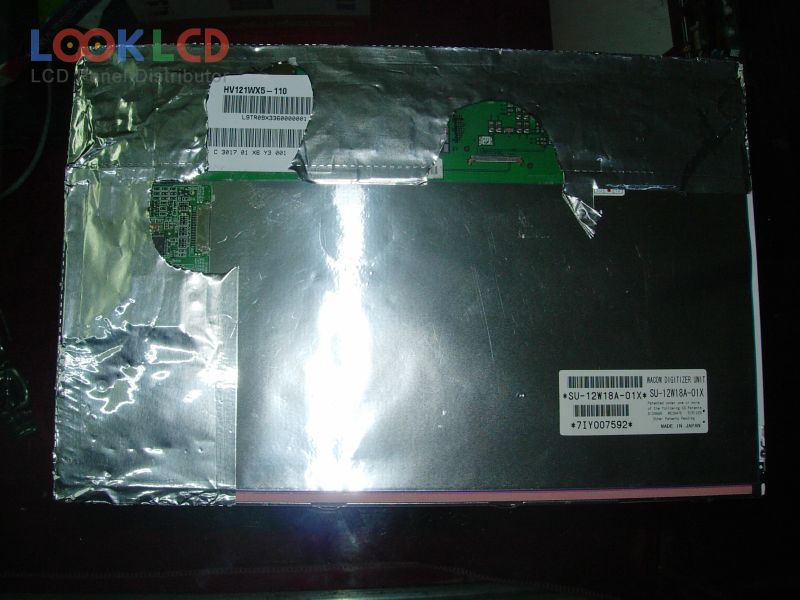

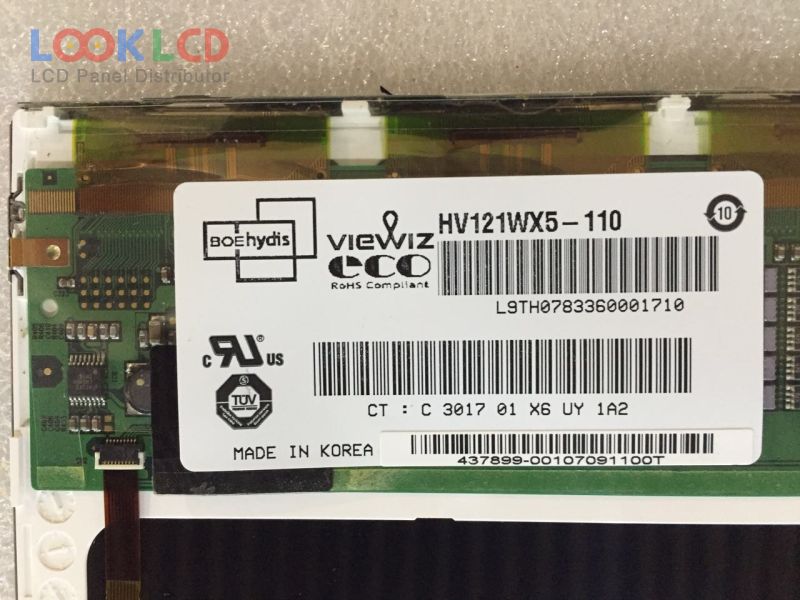

| Nama Wahi | HV121WX5-110 |
| Waitohu | HYDIS |
| Rahi | 12.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | HYDIS |
| panel model | HV121WX5-110 3 Compatible model |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 12.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | AFFS+, Normally Black, Transmissive |
| active area | 261.12×163.2 mm |
| outline | 276.8×180×6.8 mm |
| surface | Antireflection |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 12S4PWLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| HV121WX4-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX4-120 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-114 | HYDIS | 12.1 | 1280×800 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-110 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-111 | HYDIS | 12.1 | 1280×800 |
| HV121WX6-112 | HYDIS | 12.1 | 1280×800 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| HSD100PXN1-A00 | HannStar | 10.0 | 1024×768 |
| LP101WH4-SLAA | LG Display | 10.1 | 1366×768 |
| LP101WH4-SLP2 | LG Display | 10.1 | 1366×768 |
| LQ070M1SX01 | SHARP | 7.0 | 1200×1920 |
| LSL080AL02-002 | Samsung | 8.0 | 800×1280 |
| N101ICG-L21 Rev.A1 | Innolux | 10.1 | 1280×800 |
| NDS0708001280-31 | SEBO | 7.0 | 800×1280 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
| VVX10T022N00 | Panasonic | 10.1 | 2560×1600 |
