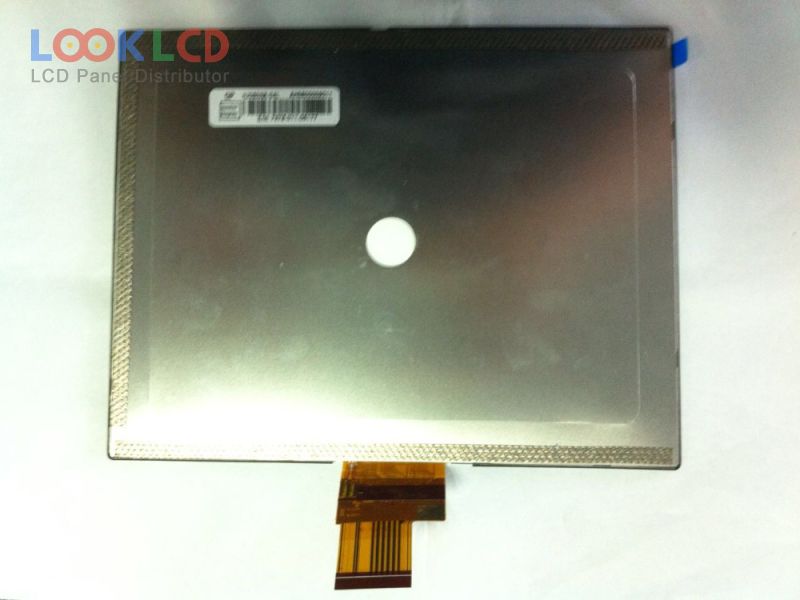

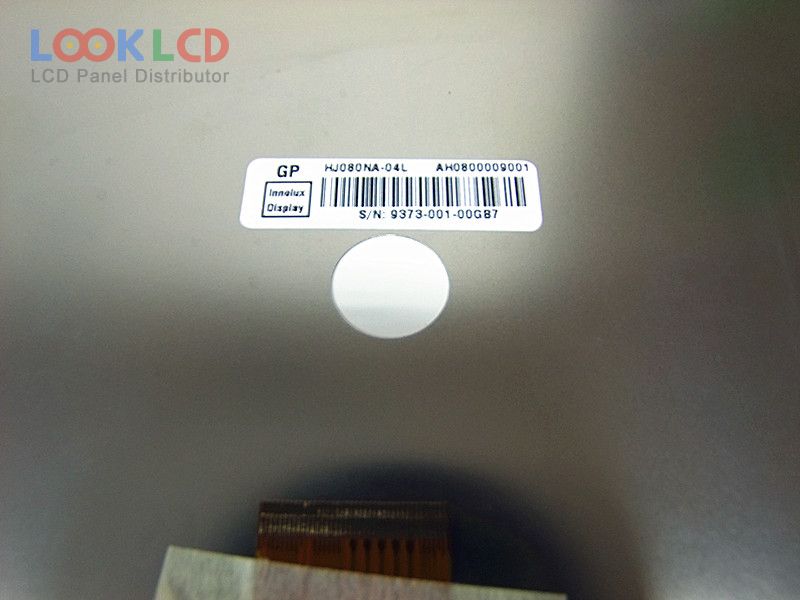

| Nama Wahi | HJ080NA-04L |
| Waitohu | Innolux |
| Rahi | 8.0 |
| Taupānga | PAD |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 700:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | INNOLUX |
| panel model | HJ080NA-04L |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 162.048×121.536 mm |
| outline | 174×136×2.65 mm |
| surface | Clear |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| response time | 6/14 (Typ.)(Tr/Td) |
| viewing angle | 75/75/75/75 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S7PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 40 pins |
| input voltage | 3.3/11.5/22/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| application | PAD |
| C080VW04 V0 | AUO | 8.0 | 800×480 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| HJ080IA-01B | Innolux | 8.0 | 1024×768 |
| HJ080IA-01E | Innolux | 8.0 | 1024×768 |
| HJ080IA-01F | Innolux | 8.0 | 1024×768 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| LM64P122 | SHARP | 8.0 | 640×480 |
| LQ080T5GG01B | SHARP | 8.0 | 480×234 |
| LQ080V3DG01 | SHARP | 8.0 | 640×480 |
| PD080SY1 | E Ink | 8.0 | 800×600 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HT12X21-221 | HYDIS | 12.1 | 1024×768 |
| HV101WU1-1E3 | HYDIS | 10.1 | 1920×1200 |
| LP097X02-SLN1 | LG Display | 9.7 | 1024×768 |
| TFTMD070021 | JDI | 7.0 | 1200×1920 |
| TM097TDH01 | Tianma | 9.7 | 1024×768 |
| TM097TDH02 | Tianma | 9.7 | 1024×768 |
| TPF0702001N | JDI | 7.0 | 1200×1920 |
| VVX10F011B00 | Panasonic | 10.1 | 1920×1200 |
