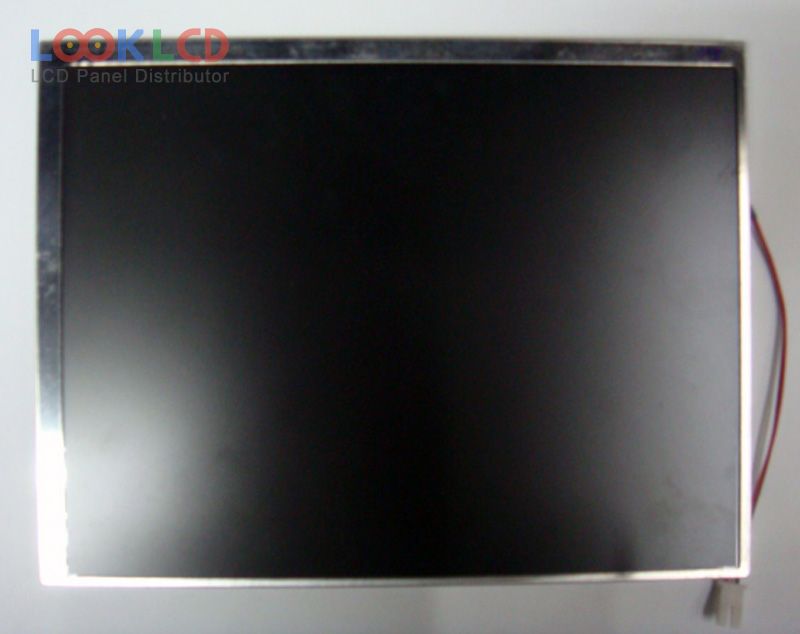

| Nama Wahi | PD080SY1 |
| Waitohu | E Ink |
| Rahi | 8.0 |
| Taupānga | IA |
| Whakatau | 800×600 |
| Te tito | LCM |
| Tirohanga | 300 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | PVI |
| panel model | PD080SY1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 8.0 inch |
| resolution | 800(RGB)×600 , SVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 162×121.5 mm |
| outline | 174.4×133.1×6.74 mm |
| surface | Antiglare |
| brightness | 300 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit) |
| response time | 15/25 (Typ.)(Tr/Td) |
| viewing angle | 60/60/40/55 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 3S10PWLEDWithout Driver |
| signal interface | TTL (1 ch, 6-bit), 50 pins |
| input voltage | 3.3/3.3/9.6/18/-6V (Typ.)(VCC1/VCC2/AVDD/VDDG/VEEG) |
| application | IA |
