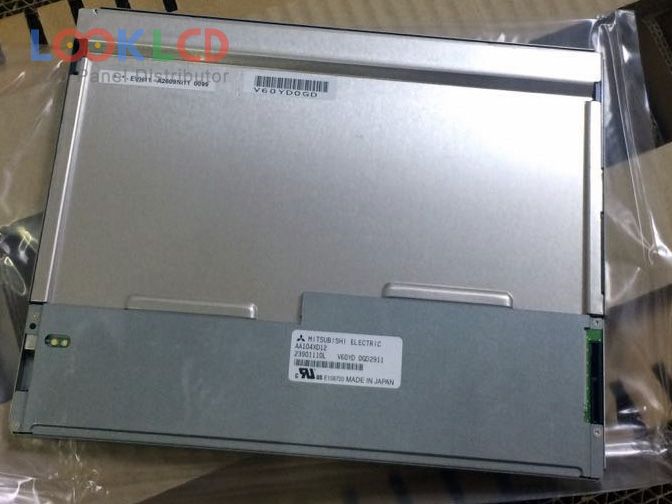

| Nama Wahi | AA104XD12--G1 |
| Waitohu | Mitsubishi |
| Rahi | 10.4 |
| Taupānga | IA |
| Whakatau | 1024×768 |
| Te tito | LCM |
| Tirohanga | 1000 |
| CR | 700:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | Mitsubishi |
| panel model | AA104XD12--G1 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.4 inch |
| resolution | 1024(RGB)×768 , XGA |
| display mode | TN, Normally White, Transmissive |
| active area | 210.4×157.8 mm |
| outline | 230×180.2×14.8 mm |
| surface | Hard coating (6H), Antireflection |
| brightness | 1000 cd/m² (Typ.) |
| contrast ratio | 700:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 8-bit), CIE193140% |
| response time | 4/12 (Typ.)(Tr/Td) |
| viewing angle | 80/80/65/65 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 4 stringsWLEDWithout Driver |
| signal interface | LVDS (1 ch, 6/8-bit), 20 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
