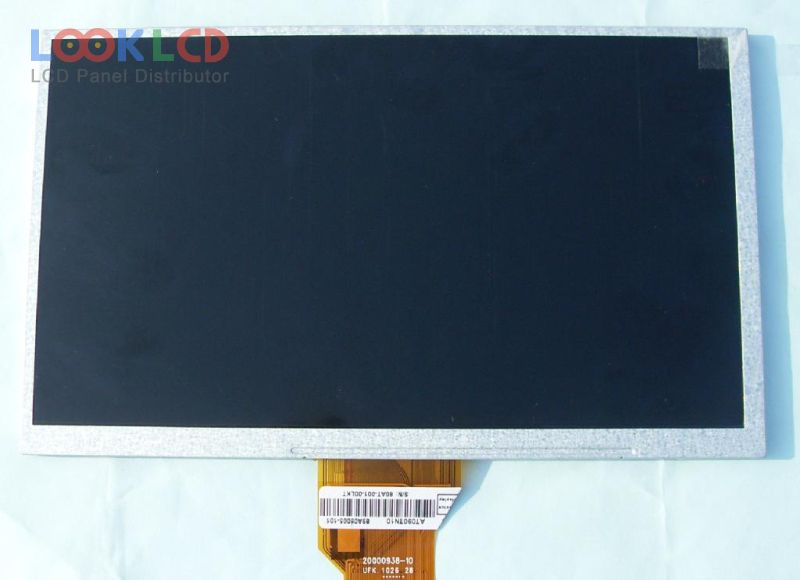

| Nama Wahi | AT090TN10 |
| Waitohu | Innolux |
| Rahi | 9.0 |
| Taupānga | DPF |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | 250 |
| CR | 500:1 |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | CHIMEI INNOLUX |
| panel model | AT090TN10 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 198×111.696 mm |
| outline | 211.1×126.5 mm |
| surface | Antiglare |
| brightness | 250 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193150% |
| response time | 10/15 (Typ.)(Tr/Td) |
| viewing angle | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| lamp type | WLEDWithout Driver |
| signal interface | TTL (1 ch, 6/8-bit), 50 pins |
| input voltage | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| application | DPF |
