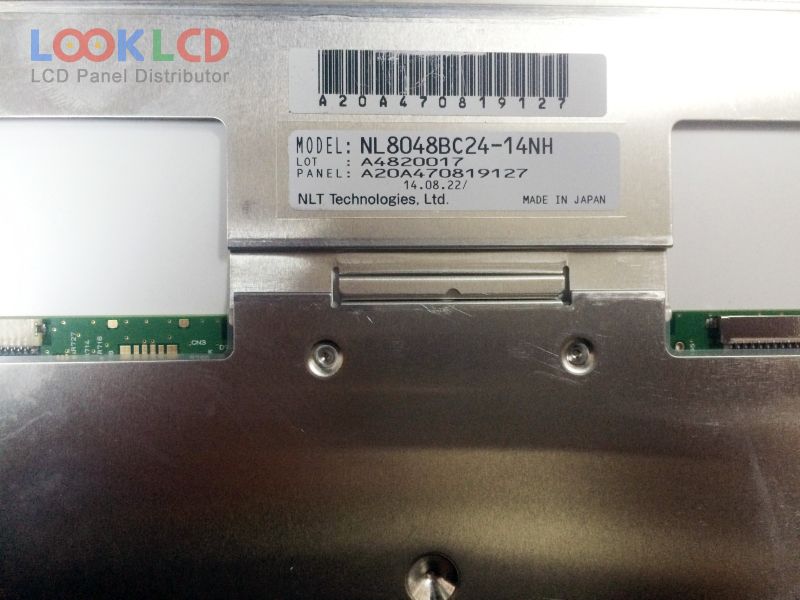

| Nama Wahi | NL8048BC24-14NH |
| Waitohu | NLT |
| Rahi | 9.0 |
| Taupānga | IA |
| Whakatau | 800×480 |
| Te tito | LCM |
| Tirohanga | |
| CR | |
| Nga Tae | 262K/16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | NEC |
| panel model | NL8048BC24-14NH |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 9.0 inch |
| resolution | 800(RGB)×480 , WVGA |
| display mode | UA-SFT, Normally Black, Transmissive |
| active area | 196.8×118.08 mm |
| surface | Anti Fingerprint + Antiglare |
| brightness | |
| contrast ratio | |
| display colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| response time | |
| viewing angle | |
| frequency | 60Hz |
| lamp type | WLED |
| signal interface | LVDS (1 ch, 6/8-bit) |
| input voltage | 3.3V (Typ.) |
| application | IA |
| A090VW01 V3 | AUO | 9.0 | 800×480 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN10 | Innolux | 9.0 | 800×480 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| LTA090B400F | TOSHIBA | 9.0 | 800×480 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| AA104VC06 | Mitsubishi | 10.4 | 640×480 |
| AA121XK04 | Mitsubishi | 12.1 | 1024×768 |
| AA150XN07 | Mitsubishi | 15.0 | 1024×768 |
| COM70T7M07ZLC | ORTUSTECH | 7.0 | 800×480 |
| G057QTN01.1 | AUO | 5.7 | 320×240 |
| HSD190MEN4-A03 | HannStar | 19.0 | 1280×1024 |
| LQ10D367 | SHARP | 10.4 | 640×480 |
| MD400F640PD5 | Panasonic | 9.8 | 640×400 |
| TM080SDH01 | Tianma | 8.0 | 800×600 |
