AUO B101UAN01.7 HW0A Raraunga Raarangi, Whakatakotoranga, rakau, tono www.looklcd-no.com
LookLCD LookLCD

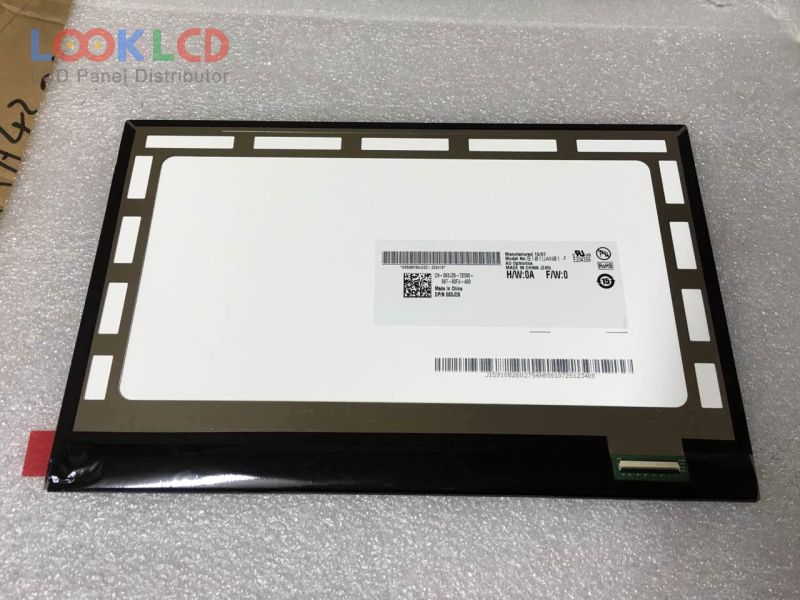

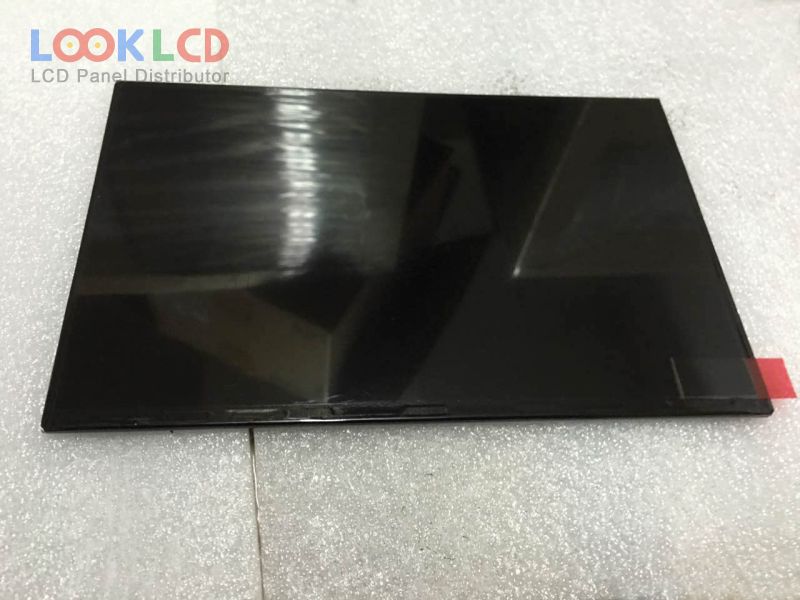

B101UAN01.7 HW0A

B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A
B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb B101UAN01.7 HW0A thumb
Waitohu
AUO
Rahi
10.1
Taupānga
PAD
Whakatau
1920×1200
Te tito
LCM
Tirohanga
400
CR
800:1
Nga Tae
16.7M
Whakamuri
WLED
Atanga
MIPI
In Stock
7648
Whakatakotoranga

Nama Wahi B101UAN01.7 HW0A
WaitohuAUO
Rahi10.1
TaupāngaPAD
Whakatau1920×1200
Te titoLCM
Tirohanga400
CR800:1
Nga Tae16.7M
WhakamuriWLED
AtangaMIPI
panel brandAUO
panel modelB101UAN01.7 HW0A
panel type a-Si TFT-LCD , LCM
panel size10.1 inch
resolution1920(RGB)×1200 , WUXGA
display modeAHVA, Normally Black, Transmissive
active area216.81×135.5 mm
outline227.72×147.8×5.35 mm
surfaceGlare (Haze 0%)
brightness400 cd/m² (Typ.)
contrast ratio800:1 (Typ.)
display colors16.7M (8-bit), CIE193150%
response time25 (Typ.)(Tr+Td)
viewing angle85/85/85/85 (Typ.)(CR≥10)(L/R/U/D)
frequency60Hz
lamp typeWLEDEmbedded (LED Driver)

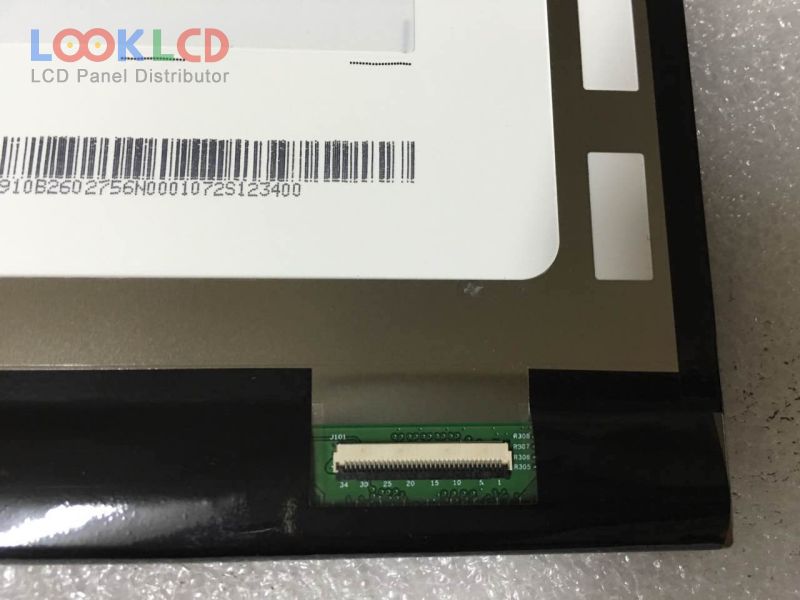

signal interfaceMIPI (4 data lanes), 34 pins
input voltage3.3V (Typ.)
applicationPAD
