| Nama Wahi | LQ101K1LY02 |
| Waitohu | SHARP |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1280×800 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 800:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | SHARP |

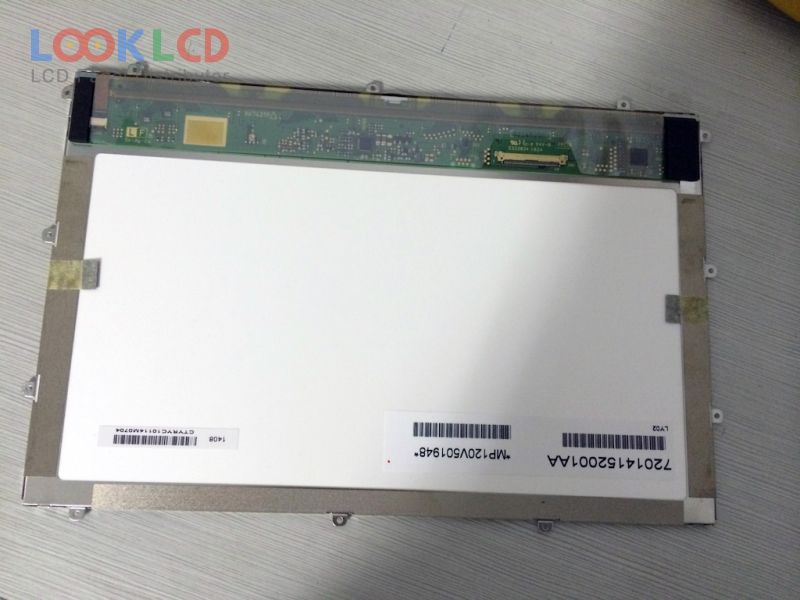

| panel model | LQ101K1LY02 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1280(RGB)×800 , WXGA |
| display mode | ASV, Normally Black, Transmissive |
| active area | 216.96×135.6 mm |
| outline | 238.12×156.48×6 mm |
| surface | Glare (Haze 0%), Antireflection |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 16.7M (8-bit) |
| response time | 25 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | 7S6PWLEDWithout Driver |
| signal interface | LVDS (1 ch, 8-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
