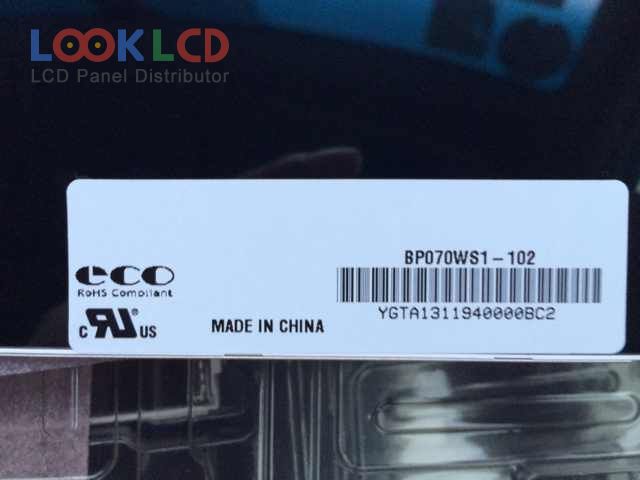

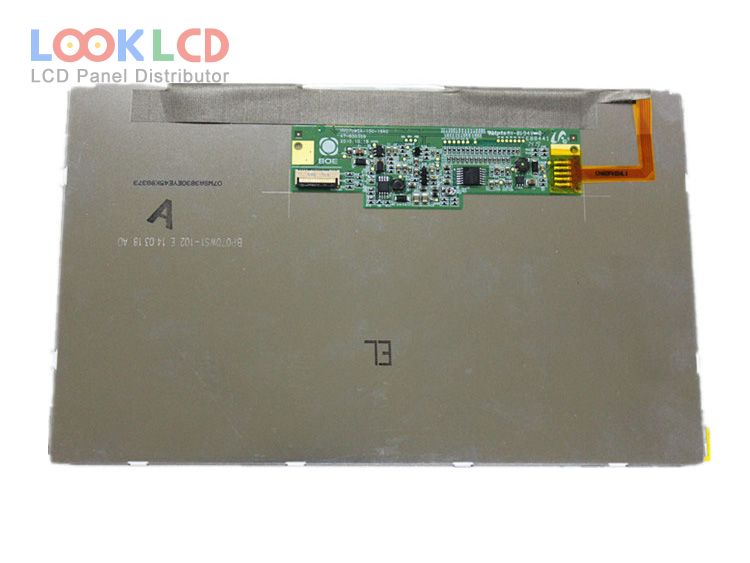

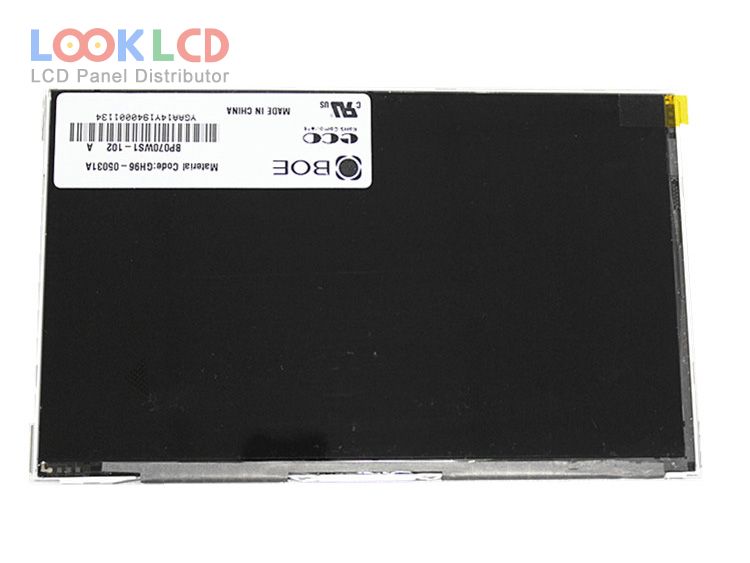

| Nama Wahi | BP070WS1-102 |
| Waitohu | BOE |
| Rahi | 7.0 |
| Taupānga | PAD |
| Whakatau | 1024×600 |
| Te tito | LCM |
| Tirohanga | 400 |
| CR | 900:1 |
| Nga Tae | 16.7M |
| Whakamuri | WLED |
| Atanga | LVDS |
| panel brand | BOE |
| panel model | BP070WS1-102 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 7.0 inch |
| resolution | 1024(RGB)×600 , WSVGA |
| display mode | ADS, Normally Black, Transmissive |
| active area | 153.6×90 mm |
| outline | 164.05×100.86 mm |
| surface | Hard coating (3H), Antireflection |
| brightness | 400 cd/m² (Typ.) |
| contrast ratio | 900:1 (Typ.) |
| display colors | 16.7M (6-bit + Hi-FRC), CIE193152% |
| response time | 30 (Typ.)(Tr+Td) |
| viewing angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 8-bit), 31 pins |
| input voltage | 3.7V (Typ.) |
| application | PAD |
| BP070WS1-102 | BOE | 7.0 | 1024×600 |
| BP070WS1-200 | BOE | 7.0 | 1024×600 |
| BP070WS1-400 | BOE | 7.0 | 1024×600 |
| BP070WS1-500 | BOE | 7.0 | 1024×600 |
| BP070WSA-400 | BOE | 7.0 | 1024×600 |
| BP070WX1-100 | BOE | 7.0 | 1280×800 |
| BP070WX1-300 | BOE | 7.0 | 800×1280 |
| BP070WX6-400 | BOE | 7.0 | 800×1280 |
| CLAA070NP01HXG | CPT | 7.0 | 1024×600 |
| HSD070IDW1-D00 | HannStar | 7.0 | 800×480 |
| B101EVT03.1 | AUO | 10.1 | 1280×800 |
| B116HAT03.1 | AUO | 11.6 | 1920×1080 |
| BP101WX1-200 | BOE | 10.1 | 1280×800 |
| CLAA080WQ05 | CPT | 8.0 | 800×1280 |
| HSD101PHW1-A00 | HannStar | 10.1 | 1366×768 |
| HV101HD1-1E0 | HYDIS | 10.1 | 1366×768 |
| LP125WH2-SPR1 | LG Display | 12.5 | 1366×768 |
| LTL070AL03 | Samsung | 7.0 | 800×1280 |
| LTL120QL01-001 | Samsung | 12.0 | 2160×1440 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
