| Nama Wahi | HSD101PHW1-A00 |
| Waitohu | HannStar |
| Rahi | 10.1 |
| Taupānga | PAD |
| Whakatau | 1366×768 |
| Te tito | LCM |
| Tirohanga | 200 |
| CR | 500:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | LVDS |

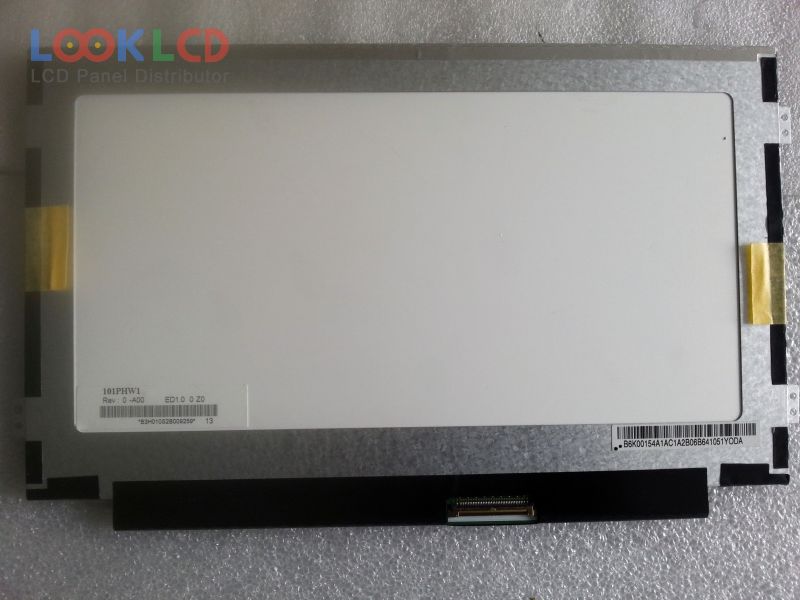

| panel brand | HannStar |
| panel model | HSD101PHW1-A00 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 10.1 inch |
| resolution | 1366(RGB)×768 , WXGA |
| display mode | TN, Normally White, Transmissive |
| active area | 222.726×125.222 mm |
| outline | 243×146.5×3.6 mm |
| shape style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| surface | Hard coating (3H) |
| brightness | 200 cd/m² (Typ.) |
| contrast ratio | 500:1 (Typ.) |
| display colors | 262K (6-bit), CIE193145% |
| response time | 2.4/5.6 (Typ.)(Tr/Td) |
| viewing angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | LVDS (1 ch, 6-bit), 40 pins |
| input voltage | 3.3V (Typ.) |
| application | PAD |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HSD101PFW2-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW4-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PWW1-A00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-A00 Rev.4 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-F00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-G10 | HannStar | 10.1 | 1280×800 |
| HSD101PWW1-H00 | HannStar | 10.1 | 1280×800 |
| HSD101PWW2-A00 | HannStar | 10.1 | 1280×800 |
| B101EVT04.0 | AUO | 10.1 | 1280×800 |
| B116XAT03.1 | AUO | 11.6 | 1366×768 |
| BP101WX1-100 | BOE | 10.1 | 1280×800 |
| BP101WX1-206 | BOE | 10.1 | 1280×800 |
| LD080UX1-SMA2 | LG Display | 8.0 | 1200×1600 |
| LD101WX2-SLP1 | LG Display | 10.1 | 1280×800 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LPM089A001A | JDI | 8.9 | 2560×1600 |
| LTN097XL02-A01 | Samsung | 9.7 | 1024×768 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
