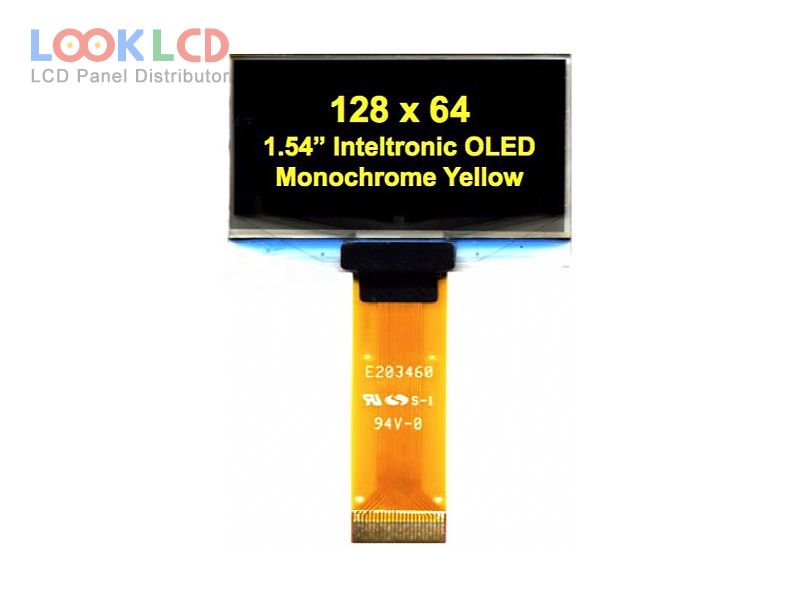

| Nama Wahi | UG-2864ASYCG01 |
| Waitohu | WiseChip |
| Rahi | 1.54 |
| Taupānga | IA |
| Whakatau | 128×64 |
| Te tito | OLED |
| Tirohanga | 150 |
| CR | 10000:1 |
| Nga Tae | Mono(Yellow) |
| Whakamuri | self |
| Atanga | CPU/SPI/I²C |
| panel brand | WiseChip |
| panel model | UG-2864ASYCG01 |
| panel type | PM-OLED , OLED |
| panel size | 1.54 inch |
| resolution | 128×64 |
| active area | 35.056×17.52 mm |
| outline | 45.24×29.14×2.1 mm |
| surface | |
| brightness | 150 cd/m² (Typ.) |
| contrast ratio | 10000 : 1 (Typ.) |
| display colors | Mono(Yellow) (1-bit) |
| viewing angle | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| driver ic | COG Built-in SSD1305 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, I²C, 24 pins |
| input voltage | 2.8/12.5V (Typ.)(VDD/VCC) |
| rohs: | |
| application | IA |
