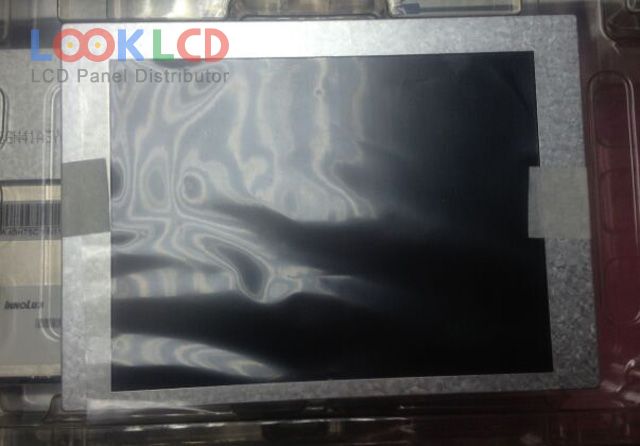

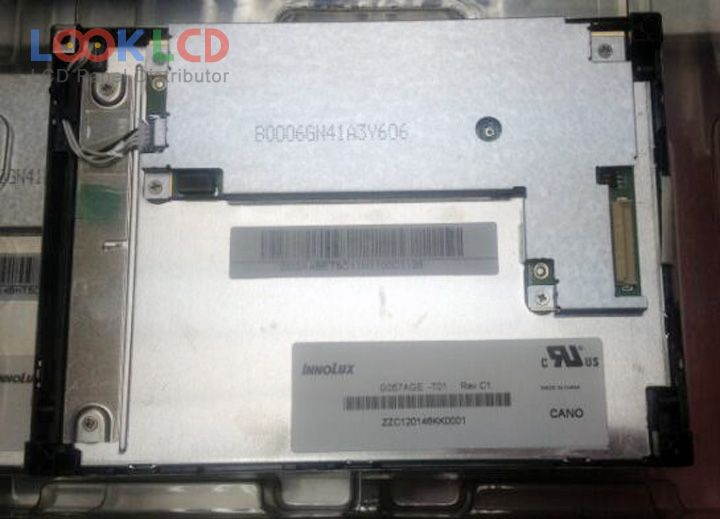

| Nama Wahi | G057AGE-T01 |
| Waitohu | Innolux |
| Rahi | 5.7 |
| Taupānga | IA |
| Whakatau | 320×240 |
| Te tito | LCM |
| Tirohanga | 500 |
| CR | 800:1 |
| Nga Tae | 262K |
| Whakamuri | WLED |
| Atanga | TTL |
| panel brand | INNOLUX |
| panel model | G057AGE-T01 |
| panel type | a-Si TFT-LCD , LCM |
| panel size | 5.7 inch |
| resolution | 320(RGB)×240 , QVGA |
| display mode | TN, Normally White, Transmissive |
| active area | 115.2×86.4 mm |
| outline | 144×104.6×12.8 mm |
| surface | Antiglare (Haze 25%) |
| brightness | 500 cd/m² (Typ.) |
| contrast ratio | 800:1 (Typ.) |
| display colors | 262K (6-bit), CIE193154% |
| response time | 15/35 (Typ.)(Tr/Td) |
| viewing angle | 80/80/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| frequency | 60Hz |
| lamp type | WLEDEmbedded (LED Driver) |
| signal interface | TTL (1 ch, 6-bit), 33 pins |
| input voltage | 3.3V (Typ.) |
| application | IA |
| CLAA057VA02CW | CPT | 5.7 | 640×480 |
| G057AGE-T01 | Innolux | 5.7 | 320×240 |
| KCG057QV1DB-G00 | Kyocera | 5.7 | 320×240 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| LCBHBT161M | NAN YA | 5.7 | 320×240 |
| LM24P20 | SHARP | 5.7 | 240×128 |
| M203-L8A | NAN YA | 5.7 | 320×240 |
| MC57T04L | Other | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
| TM320240EGFWVSWD | Tianma | 5.7 | 320×240 |
| DLC0570CDG-1 | Other | 5.7 | 320×240 |
| HGS128645-Y-EH-LV | Other | 2.7 | 128×64 |
| KCG057QV1DB-G56 | Kyocera | 5.7 | 320×240 |
| KL6448USTS-FFW | Kyocera | 6.9 | 640×480 |
| LMBHAT014G16CKS | NAN YA | 5.4 | 240×128 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| NL6448AC33-18A | NLT | 10.4 | 640×480 |
| NL6448BC20-35D | NLT | 6.5 | 640×480 |
| PD064VXB | E Ink | 6.4 | 640×480 |
| UG-9664HSWAG01 | WiseChip | 0.95 | 96×64 |
