| Nama Wahi | UG-2864HMBEG01 |
| Waitohu | WiseChip |
| Rahi | 0.96 |
| Taupānga | IA |
| Whakatau | 128×64 |
| Te tito | OLED |
| Tirohanga | 120 |
| CR | 2000:1 |
| Nga Tae | Area(BY) |
| Whakamuri | self |
| Atanga | CPU/SPI/I²C |

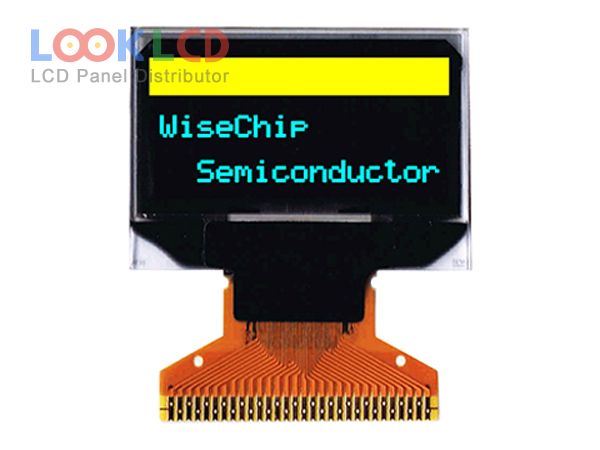

| panel brand | Univision |
| panel model | UG-2864HMBEG01 |
| panel type | PM-OLED , OLED |
| panel size | 0.96 inch |
| resolution | 128×64 |
| active area | 21.744×11.204 mm |
| outline | 26.7×19.26×1.55 mm |
| surface | |
| brightness | 120 cd/m² (Typ.) |
| contrast ratio | 2000 : 1 (Typ.) |
| display colors | Area(BY) |
| viewing angle | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | COG Built-in SSD1306 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| input voltage | 2.8/9V (Typ.)(VDD/VCC) |
| rohs: | |
| application | IA |
