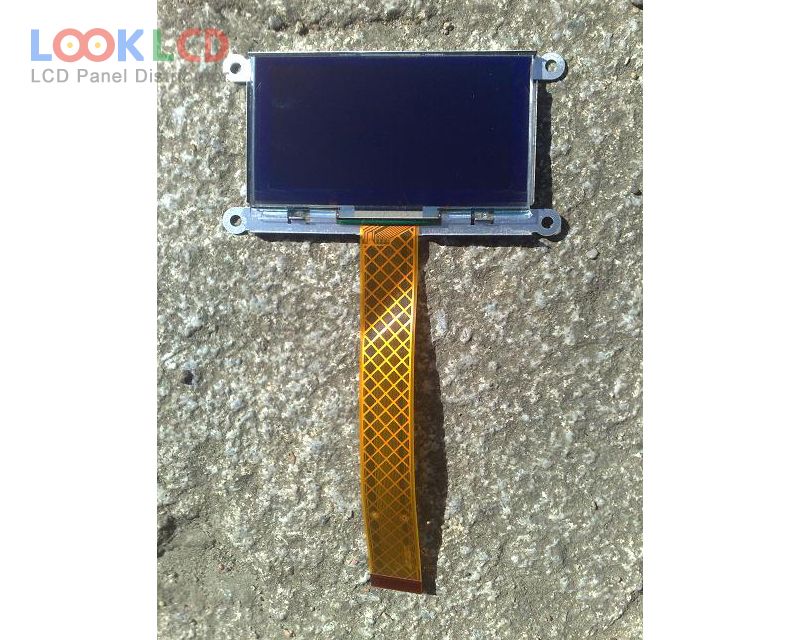

| Nama Wahi | UG-2864ASYDT01 |
| Waitohu | WiseChip |
| Rahi | 2.7 |
| Taupānga | IA |
| Whakatau | 128×64 |
| Te tito | OLED |
| Tirohanga | 100 |
| CR | 1000:1 |
| Nga Tae | Mono(Yellow) |
| Whakamuri | self |
| Atanga | CPU/SPI |
| panel brand | Univision |
| panel model | UG-2864ASYDT01 |
| panel type | PM-OLED , OLED |
| panel size | 2.7 inch |
| resolution | 128×64 |
| active area | 61.41×30.69 mm |
| outline | 73×41.86×3.7 mm |
| surface | |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 1000 : 1 (Min.) |
| display colors | Mono(Yellow) (1-bit) |
| viewing angle | 80/80/80/80 (Min.)(L/R/U/D) |
| driver ic | TAB Built-in SSD1325 |
| signal interface | 8-bit 6800/8080 parallel, 4-wire SPI, 30 pins |
| input voltage | 2.8/15V (Typ.)(VDD/VCC) |
| rohs: | |
| application | IA |
