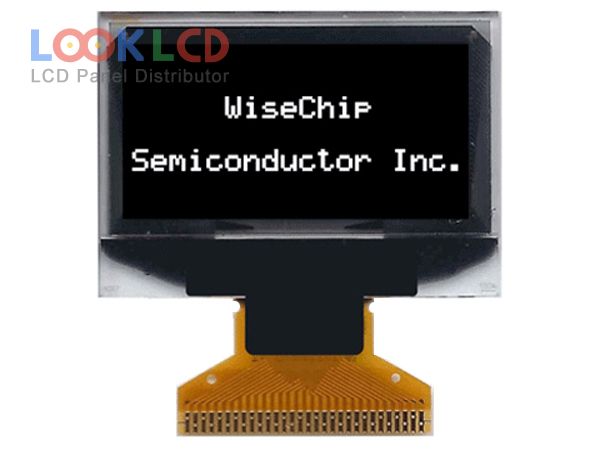

| Nama Wahi | UG-2864KSWLG01 |
| Waitohu | WiseChip |
| Rahi | 1.3 |
| Taupānga | IA |
| Whakatau | 128×64 |
| Te tito | OLED |
| Tirohanga | 100 |
| CR | 10000:1 |
| Nga Tae | Mono(White) |
| Whakamuri | self |
| Atanga | CPU/SPI/I²C |
| panel brand | WiseChip |
| panel model | UG-2864KSWLG01 |
| panel type | PM-OLED , OLED |
| panel size | 1.3 inch |
| resolution | 128×64 |
| active area | 29.42×14.7 mm |
| outline | 34.5×23×1.55 mm |
| surface | |
| brightness | 100 cd/m² (Typ.) |
| contrast ratio | 10000 : 1 (Typ.) |
| display colors | Mono(White) |
| viewing angle | |
| driver ic | COG Built-in SSD1306 |
| signal interface | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
| input voltage | 2.8/12.0V (Typ.)(VDD/VCC) |
| rohs: | |
| application | IA |
